| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 93° Approach | Int. 55° Diamond 93 95° Approac | | Min D.O.C. | 1 mm |
| Insert Style | DNMG | Depth of Cut Maximum (APMX) | 3.5 mm |
| Corner Radius (RE) | 0.8 mm | Min. Turning Feed (ft(min)) | 0.15 mm/rev |
| Insert Size | 150608 | Max. Turning Feed (ft(max)) | 0.3 mm/rev |
| Cutting Edge Length (L) | 15.5 mm | Clearance Angle Major (AN) | 0 Degrees |
| Insert Thickness (S) | 6.35 mm | Chip Breaker Type | TF |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiAlN | Unit | M |
| Grade | IC907 |
Product Features

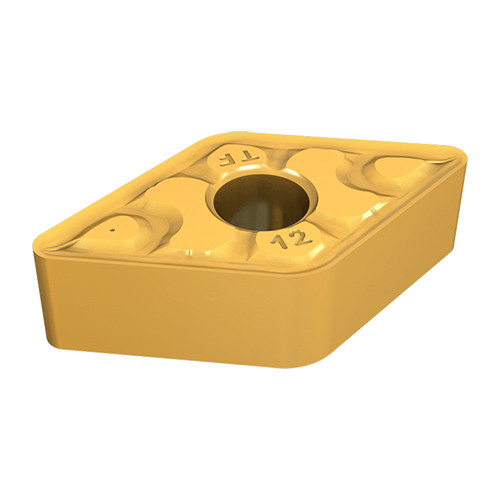

| Family Description | Double-sided, 55° rhombic insert, positive rake angle that varies along the edge to negative in order to prevent chipping. Special design reduces cratering. Used for carbon and alloy steel, stainless steel and high temp. alloys. | FamilyName | DNMG/DNGG-TF |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0188
Name
Turning Indexable Inserts
FamilyName
DNMG/DNGG-TF
BrandName
Iscar
