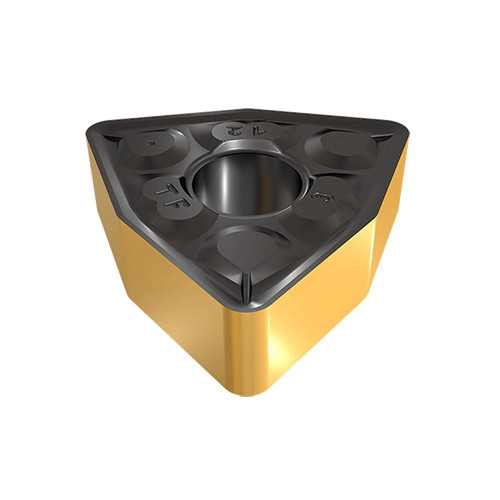

WNMG 080412-TF IC908
Double-sided trigon insert, positive rake angle that varies along the edge to negative in order to prevent chipping. Special design reduces cratering. Used for carbon and alloy steel, stainless steel and high temp. alloys.
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 80° Trigon 95° Approach | Int. 80° Trigon 95° Approach | | Min D.O.C. | 1.5 mm |

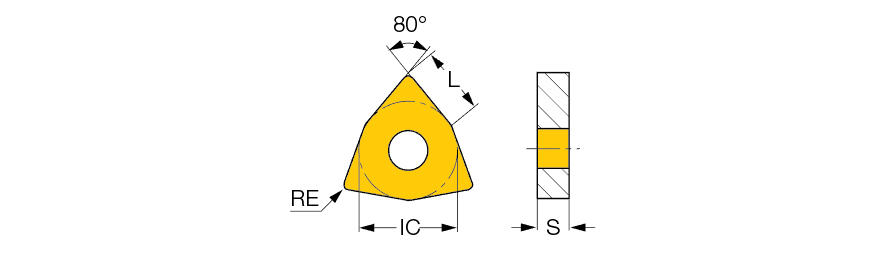

| Corner Radius (RE) | 1.2 mm | Depth of Cut Maximum (APMX) | 4.5 mm |
| Insert Size | 433-TF | Min. Turning Feed (ft(min)) | 0.15 mm/rev |
| Cutting Edge Length (L) | 8.7 mm | Max. Turning Feed (ft(max)) | 0.4 mm/rev |
| Insert Thickness (S) | 4.76 mm | Clearance Angle Major (AN) | 0 Degrees |
| Inscribed Circle Diameter (IC) | 12.7 mm | Chip Breaker Type | TF |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 | Unit | M |
Product Features
| Family Description | Double-sided trigon insert, positive rake angle that varies along the edge to negative in order to prevent chipping. Special design reduces cratering. Used for carbon and alloy steel, stainless steel and high temp. alloys. | FamilyName | WNMG-TF |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0094
Name
Turning Indexable Inserts
FamilyName
WNMG-TF
BrandName
Iscar
