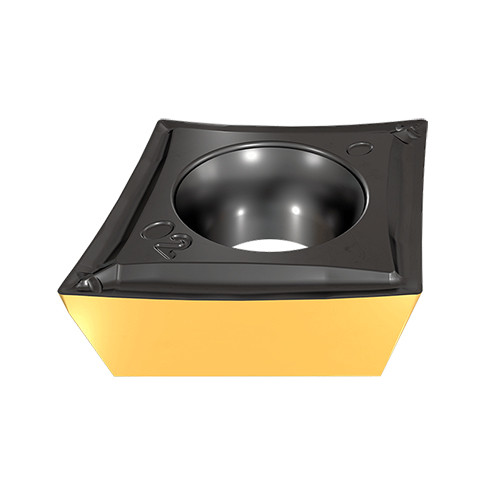

CPGT 09T304-SM IC907
80° rhombic 11° positive flank inserts used for semi-finish and finish turning. Chip breaking in moderate feed range. Positive rake, low cutting forces. Used for a wide range of materials including soft and exotic alloys.
Price: Log in For Price

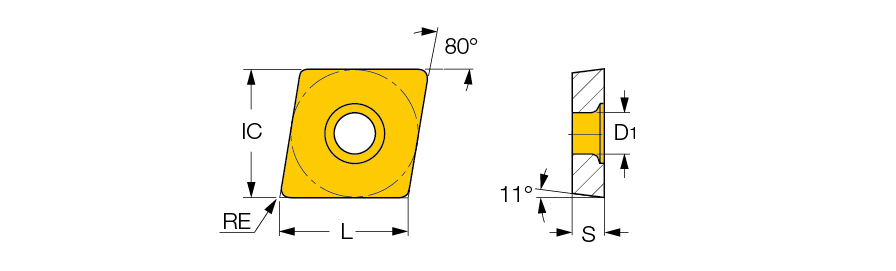

| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 4.4 mm |
| Application | | Int. 80° Diamond 95° Approach | | Tool Type | Turn Positive Inserts |
| Insert Style | CPGT | Min D.O.C. | 0.6 mm |
| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 3.5 mm |
| Insert Size | 3-1-SM | Min. Turning Feed (ft(min)) | 0.1 mm/rev |
| Cutting Edge Length (L) | 9.67 mm | Max. Turning Feed (ft(max)) | 0.35 mm/rev |
| Insert Thickness (S) | 3.97 mm | Clearance Angle Major (AN) | 11 Degrees |
| Inscribed Circle Diameter (IC) | 9.52 mm | Chip Breaker Type | SM |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC907 | Unit | M |
Product Features
| Family Description | 80° rhombic 11° positive flank inserts used for semi-finish and finish turning. Chip breaking in moderate feed range. Positive rake, low cutting forces. Used for a wide range of materials including soft and exotic alloys. | FamilyName | CPGT-SM |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0047
Name
Turning Indexable Inserts
FamilyName
CPGT-SM
BrandName
Iscar
Related Documentation
