| Applicable Material | | Cast Iron | Hard Materials | | Fixing Hole Diameter (D1) | 4.4 mm |
| Application | | Ext. 35° Diamond 112° Approach | Ext. 35° Diamond 117° Approach | Ext. 35° Diamond 72.5° Approac | Ext. 35° Diamond 91° Approach | Ext. 35° Diamond 93° Approach | Int. 35° Diamo 95° Back Approa | Int. 35° Diamond 107.5°Approa | Int. 35° Diamond 95° Approach | Int. Machining Aluminum Wheels | | Tool Type | Turn Ultra hard Inserts |
| Insert Style | VCMT | Min D.O.C. | 0.1 mm |
| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 3 mm |
| Insert Size | 160404 | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Cutting Edge Length (L) | 16.6 mm | Max. Turning Feed (ft(max)) | 0.3 mm/rev |
| Insert Thickness (S) | 4.76 mm | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 9.52 mm | Chip Breaker Type | W |
| Cutting Edge Material | PCBN | Measurement Type | Metric |
| Coating | Uncoated | Body Material | Carbide |
| Grade | IB55 | Unit | M |
Product Features

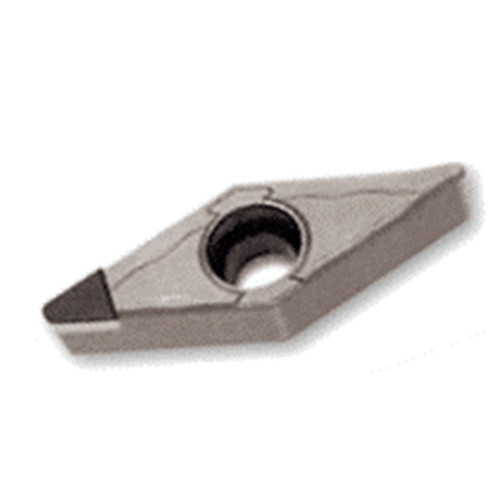

| Family Description | 35° rhombic inserts with a single brazed tip. Used for finishing cast iron . | FamilyName | VCMT (CBN) |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Switzerland |
Shipping Info
Weight per item
0.0195
Name
Turning Indexable Inserts
FamilyName
VCMT (CBN)
BrandName
Iscar
