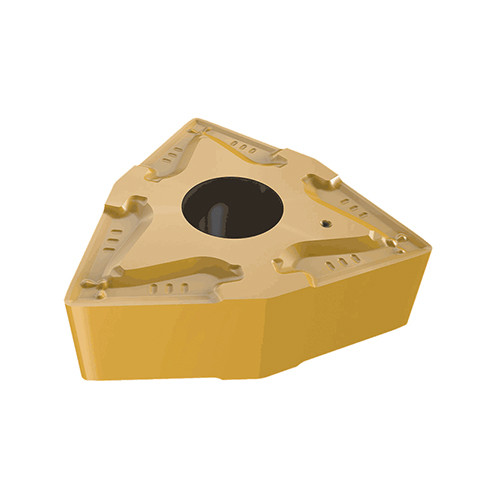

WNMG 080404-FFC IC520N
Double-sided trigon cermet grade inserts for semi-finishing and finishing applications on steel and cast iron.
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | | Grade | IC520N |
| Application | | Ext. 80° Trigon 95° Approach | Int. 80° Trigon 95° Approach | | Tool Type | Turn Negative Inserts |
| Insert Style | WNMG | Min D.O.C. | 1.5 mm |

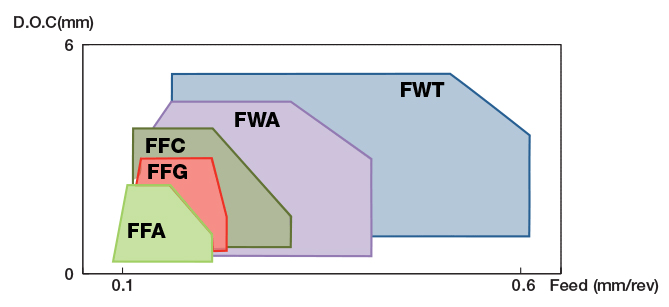

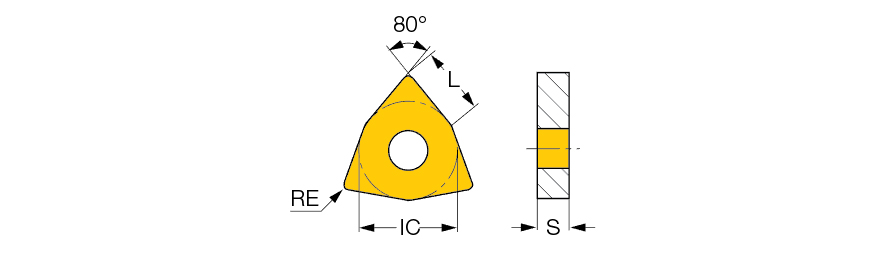

| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 2.5 mm |
| Insert Size | 431-FF | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Cutting Edge Length (L) | 8.7 mm | Max. Turning Feed (ft(max)) | 0.25 mm/rev |
| Insert Thickness (S) | 4.76 mm | Clearance Angle Major (AN) | 0 Degrees |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Edge Material | Cermet | Body Material | Carbide |
| Coating | TiCN+TiN | Unit | M |
Product Features
| Family Description | Double-sided trigon cermet grade inserts for semi-finishing and finishing applications on steel and cast iron. | FamilyName | WNMG-CERMET |
| Remarks | For chipformer selection guide of cermet inserts, and for dimensions and tolerances, click on More Info | BrandName | Iscar |
| COO | Korea |
Shipping Info
Weight per item
0.0059
Name
Turning Indexable Inserts
FamilyName
WNMG-CERMET
BrandName
Iscar
