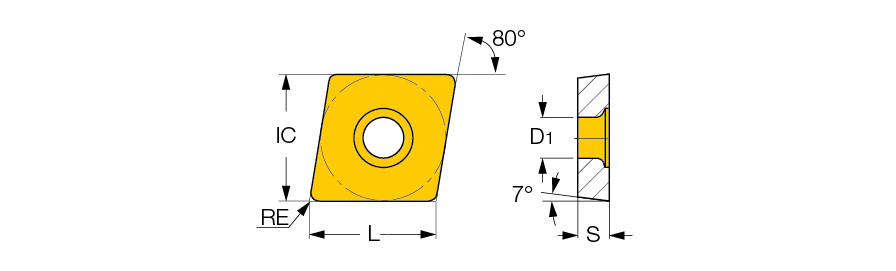

| Applicable Material | | Steel | Stainless Steel | | Fixing Hole Diameter (D1) | 4.4 mm |
| Application | | Ext. 80° Diamond 91° Approach | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 90° Approach | Int. 80° Diamond 95° Approach | Int. Back Turning 80° Diamond | Int. Chamfering 80° Diamond | | Tool Type | Turn Negative Inserts |
| Insert Style | CCMT | Min D.O.C. | 0.5 mm |
| Corner Radius (RE) | 0.8 mm | Depth of Cut Maximum (APMX) | 2.8 mm |
| Insert Size | 09T308 | Min. Turning Feed (ft(min)) | 0.03 mm/rev |
| Cutting Edge Length (L) | 9.7 mm | Max. Turning Feed (ft(max)) | 0.22 mm/rev |
| Insert Thickness (S) | 3.97 mm | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Edge Material | Cermet | Body Material | Carbide |
| Coating | TiCN+TiN | Unit | M |
| Grade | IC520N |
Product Features
| Family Description | Single-sided 80° rhombic cermet grade inserts for semi-finishing and finishing applications on steel and cast iron. | FamilyName | CCMT-CERMET |
| Remarks | For chipformer selection guide of cermet inserts, and for dimensions and tolerances, click on More Info | BrandName | Iscar |
| COO | Korea |
Shipping Info
Weight per item
0.0029
Name
Turning Indexable Inserts
FamilyName
CCMT-CERMET
BrandName
Iscar
