SBTT-16ER-0-JHP

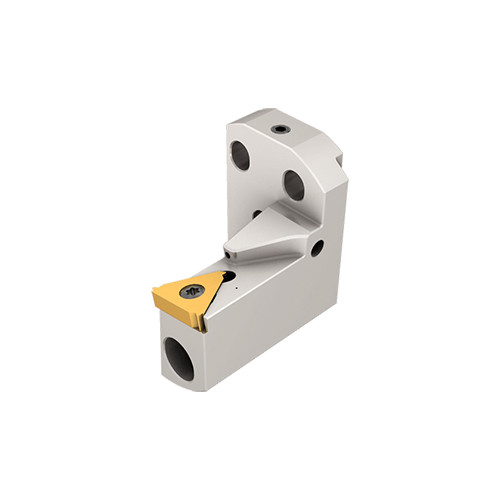

Screw lock JETCUT modular heads mount ISO laydown threading inserts for back-end machining on Swiss-Type machines.
Price: Log in For Price

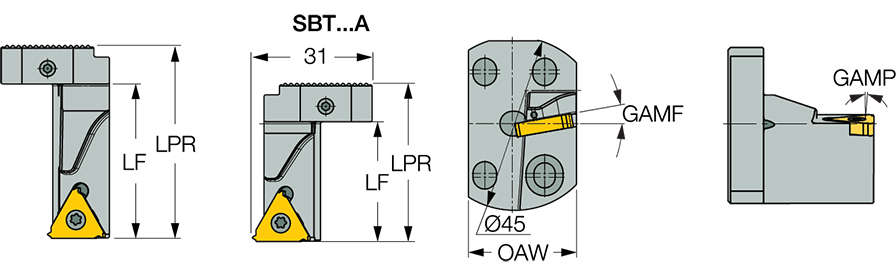

| Protruding Length (LPR) | 41 mm | Rake Angle Radial (GAMF) | 10 Degrees |
| Functional Length (LF) | 31 mm | Body Diameter (BD) | 45 mm |
| Inscribed Circle Diameter (IC) | 9.52 mm | Body Material | Steel |
| Cutting Direction (HAND) | Right Hand | Tool Type | Tapered Shank Turning Tools |
| Application | | External Threading Axial | | Measurement Type | Metric |
| Rake Angle Axial (GAMP) | 0 Degrees | Unit | M |
Product Features
| Family Description | Screw lock JETCUT modular heads mount ISO laydown threading inserts for back-end machining on Swiss-Type machines. | FamilyName | SBTT#-16ER/L-JHP |
| COO | Germany | BrandName | Iscar |
Shipping Info
Weight per item
0.1870
Name
General Indexable Turning Tools
FamilyName
SBTT#-16ER/L-JHP
BrandName
Iscar
