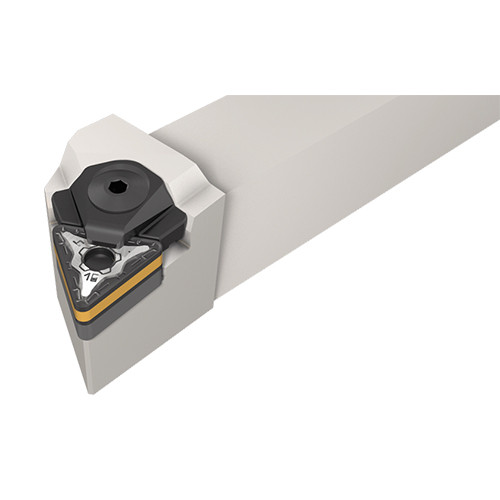

MTJNL 2525M-16W-M
93° lead angle wedge lock turning tools carrying negative triangular inserts.
Price: Log in For Price

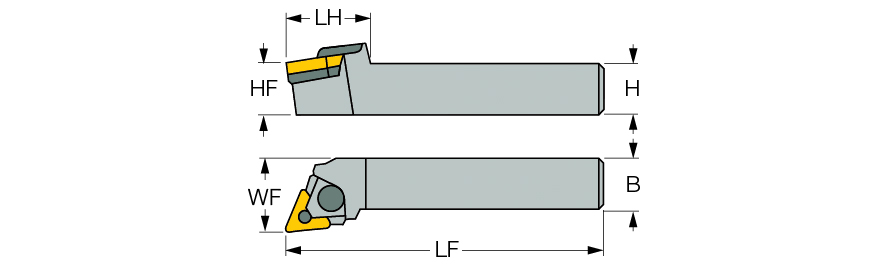

| Shank Height (H) | 25 mm | Application | | Ext. 60° Triangle 93° Approach | |
| Shank Width (B) | 25 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Length (LF) | 150 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Head Length (LH) | 32 mm | Body Material | Steel |
| Functional Width (WF) | 32 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand | Unit | M |
| Master Insert Identification (MIID) | TNMG 1604 |
Product Features
| Family Description | 93° lead angle wedge lock turning tools carrying negative triangular inserts. | FamilyName | MTJNR/L-W |
| COO | Korea | BrandName | Iscar |
Shipping Info
Weight per item
0.7300
Name
General Indexable Turning Tools
FamilyName
MTJNR/L-W
BrandName
Iscar
