SRGCR 1616H-08

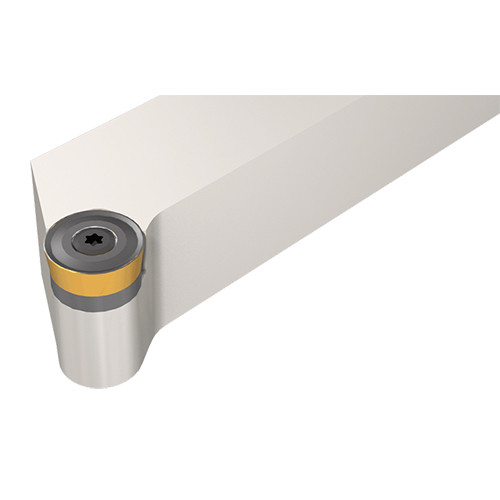

Screw lock tools carrying round inserts with 7° clearance angle.
Price: Log in For Price

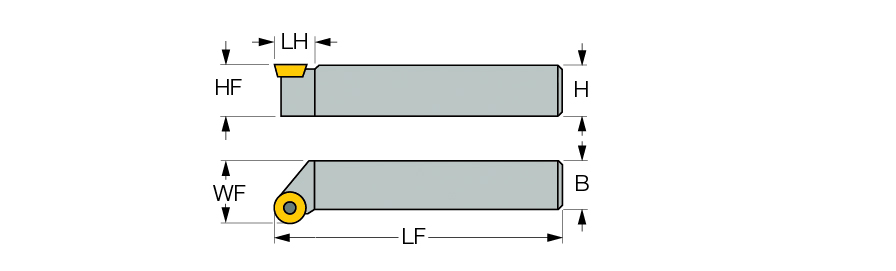

| Shank Height (H) | 16 mm | Application | | Ext. Round Face & Turn | |
| Shank Width (B) | 16 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Length (LF) | 100 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Head Length (LH) | 11 mm | Body Material | Steel |
| Functional Width (WF) | 20 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 8 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Unit | M |
| Master Insert Identification (MIID) | RCMT 0803MO |
Product Features
| Family Description | Screw lock tools carrying round inserts with 7° clearance angle. | FamilyName | SRGCR/L |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.2150
Name
General Indexable Turning Tools
FamilyName
SRGCR/L
BrandName
Iscar
