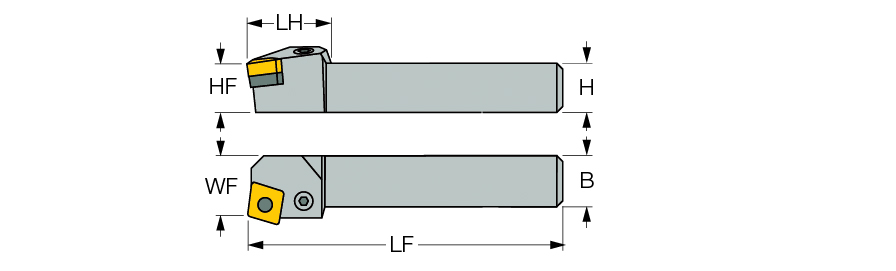

| Shank Height (H) | 25 mm | Application | | Ext. 100° Diamond 75° Approach | |
| Shank Width (B) | 25 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Length (LF) | 150 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Head Length (LH) | 27.7 mm | Body Material | Steel |
| Functional Width (WF) | 22 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Unit | M |
| Master Insert Identification (MIID) | CNMG 1204.. |
Product Features

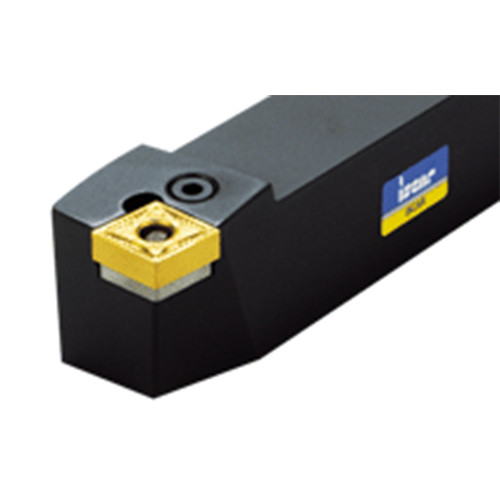

| Family Description | Lever lock tools using the 100° corner of CNMG inserts. | FamilyName | PCBNR/L |
| COO | Korea | BrandName | Iscar |
Shipping Info
Weight per item
0.7470
Name
General Indexable Turning Tools
FamilyName
PCBNR/L
BrandName
Iscar
