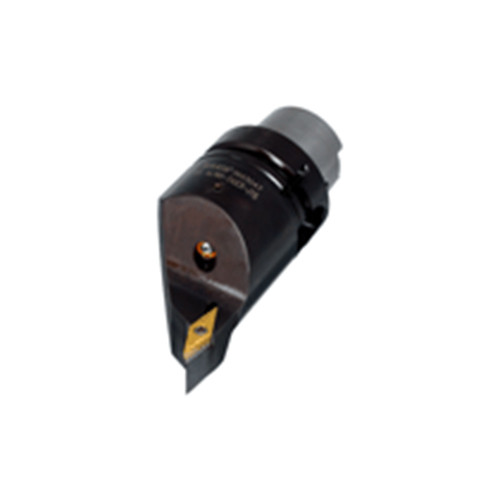

HSK A63WH-SVJCR-J16
Screw lock tools with HSK exchangeable tapered shanks carrying positive 35° inserts, for 15° mounting on turn-mill machines.
Price: Log in For Price

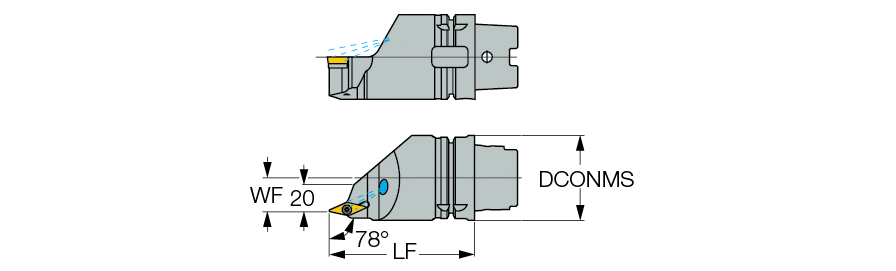

| Overall Length (OAL) | 142 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Functional Length (LF) | 110 mm | Application | | Ext. 35° Diamond 93° Approach | |
| Functional Width (WF) | 25 mm | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 63 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Connection Code Machine Side (CCMS) | HSK |
| Master Insert Identification (MIID) | VC.. 1604 | Unit | M |
Product Features
| Family Description | Screw lock tools with HSK exchangeable tapered shanks carrying positive 35° inserts, for 15° mounting on turn-mill machines. | FamilyName | HSK A63WH-SVJCR/L |

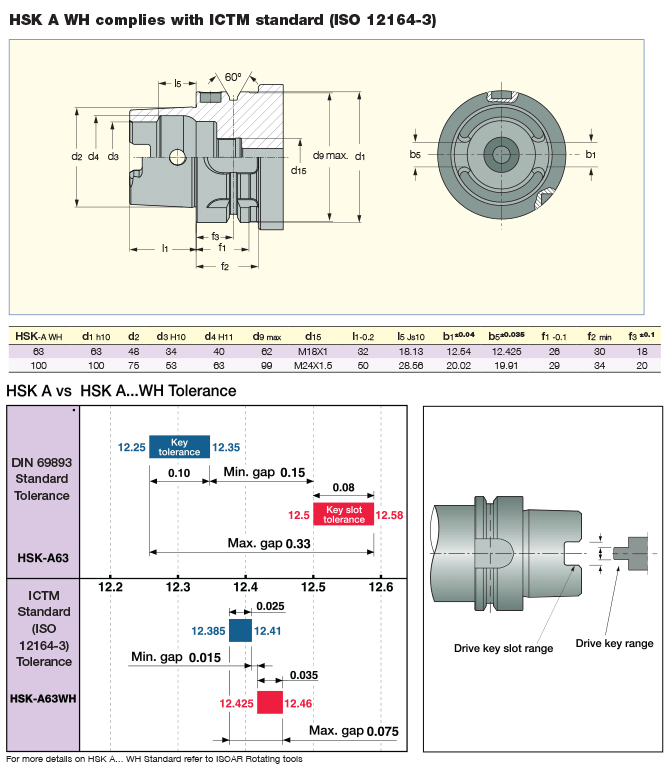

| Remarks | Complies with ICTM standard (ISO 12164-3). A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). For shank dimensions, Click on More Info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.9030
Name
General Indexable Turning Tools
FamilyName
HSK A63WH-SVJCR/L
BrandName
Iscar
