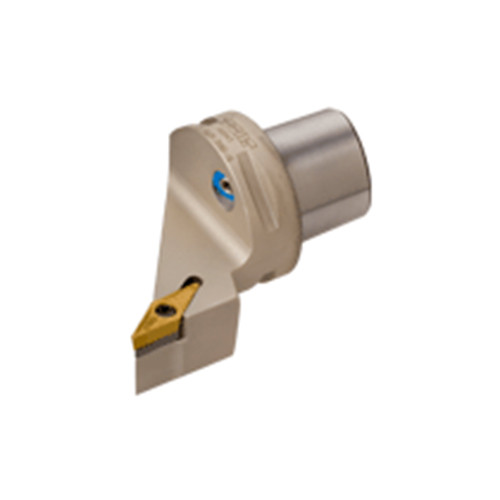

C4 SVJCR-27050-16
93° lead angle screw lock tools with CAMFIX (ISO 26623-1 standard) exchangeable shanks carrying 35° rhombic inserts with 7° clearance angle.
Price: Log in For Price
| Overall Length (OAL) | 74 mm | Application | | Ext. 35° Diamond 93° Approach | |

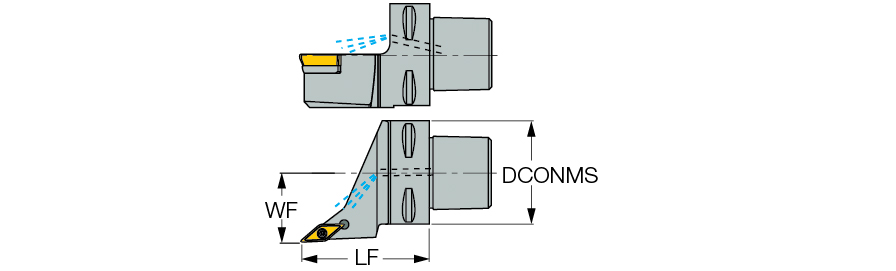

| Functional Length (LF) | 50 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Width (WF) | 27 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Body Material | Steel |
| Inscribed Circle Diameter (IC) | 9.52 mm | Tool Type | Tapered Shank Turning Tools |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
| Master Insert Identification (MIID) | VC.. 1604 | Unit | M |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | 93° lead angle screw lock tools with CAMFIX (ISO 26623-1 standard) exchangeable shanks carrying 35° rhombic inserts with 7° clearance angle. | FamilyName | C#-SVJCR/L |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.3450
Name
General Indexable Turning Tools
FamilyName
C#-SVJCR/L
BrandName
Iscar
