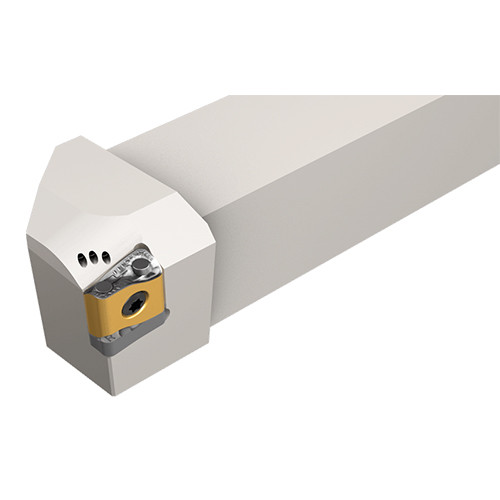

SLANL 3232P-15 TANG-JHP

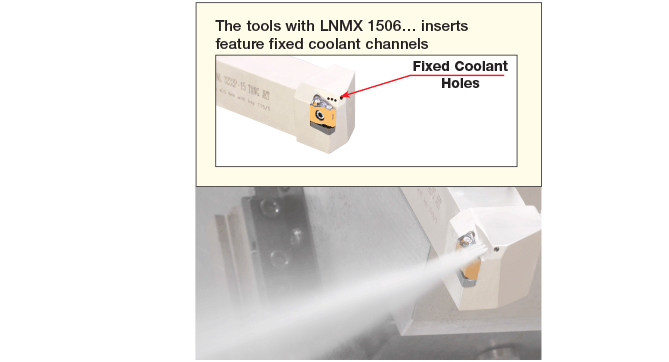

Screw-clamped tools with channels for high-pressure coolant, carrying LNMX tangentially clamped inserts. Recommended for heavy longitudinal and face turning.
Price: Log in For Price

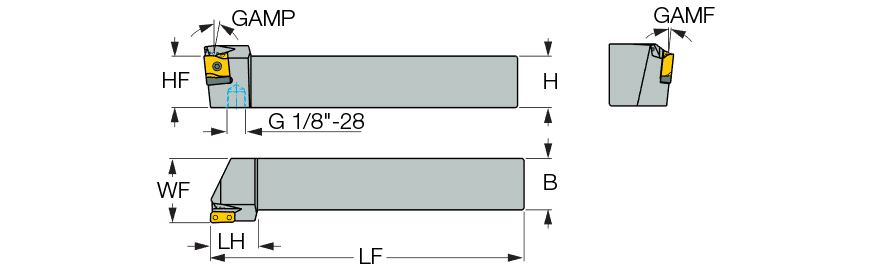

| Shank Height (H) | 32 mm | Application | | Ext. Tangential 93° Approach | |
| Shank Width (B) | 32 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Length (LF) | 170 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Head Length (LH) | 30 mm | Body Material | Steel |
| Functional Width (WF) | 40 mm | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Metric |
| Master Insert Identification (MIID) | LNMX 1506 | Unit | M |
Product Features
| Family Description | Screw-clamped tools with channels for high-pressure coolant, carrying LNMX tangentially clamped inserts. Recommended for heavy longitudinal and face turning. | FamilyName | SLANR/L-15-TANG-JHP |
| Remarks | ap max for facing 3.8 mm For more details, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.1485
Name
General Indexable Turning Tools
FamilyName
SLANR/L-15-TANG-JHP
BrandName
Iscar
