DSDNN 16-5
45° lead angle R-Clamp external turning tools carrying ISO negative SNMG inserts.
Price: Log in For Price

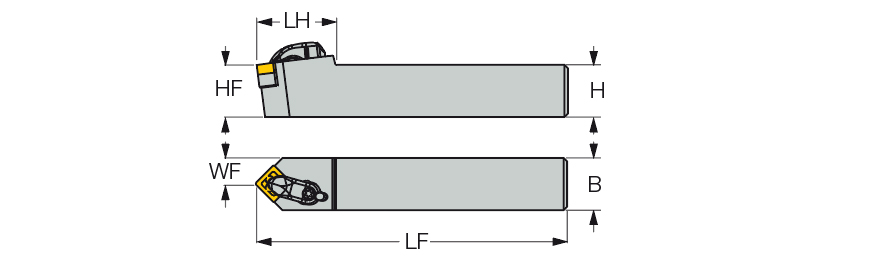

| Shank Height (H) | 1″ | Application | | Ext. 90° Square 45° Approach | |
| Shank Width (B) | 1″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Length (LF) | 6″ | Rake Angle Radial (GAMF) | -8.5 Degrees |
| Head Length (LH) | 1.65″ | Body Material | Steel |
| Functional Width (WF) | 1/2″ | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 5/8″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Neutral | Unit | I |
| Master Insert Identification (MIID) | SN..54. |
Product Features
| Family Description | 45° lead angle R-Clamp external turning tools carrying ISO negative SNMG inserts. | FamilyName | DSDNN |
| COO | Korea | BrandName | Iscar |
Shipping Info
Weight per item
1.7990
Name
General Indexable Turning Tools
FamilyName
DSDNN
BrandName
Iscar
