SRGCR 16-12-JHP
Screw lock tools with channels for high pressure coolant carrying round inserts with 7° clearance angle.
Price: Log in For Price

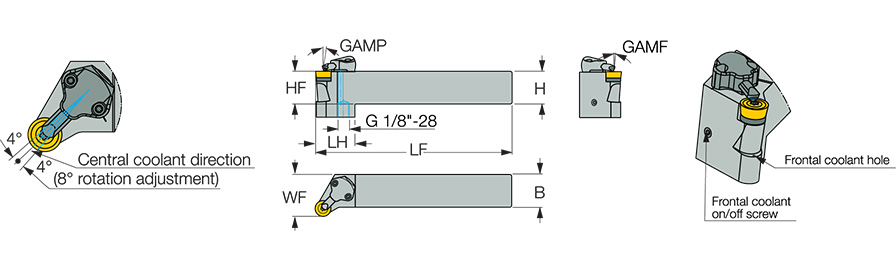

| Shank Height (H) | 1″ | Application | | Ext. Round Face & Turn | |
| Shank Width (B) | 1″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Length (LF) | 6″ | Rake Angle Radial (GAMF) | 0 Degrees |
| Head Length (LH) | 1.2″ | Body Material | Steel |
| Functional Width (WF) | 1-1/4″ | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 0.472″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Unit | I |
| Master Insert Identification (MIID) | RCMT 1204 |
Product Features
| Family Description | Screw lock tools with channels for high pressure coolant carrying round inserts with 7° clearance angle. | FamilyName | SRGCR-12-JHP |
| Remarks | For more details, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.9224
Name
General Indexable Turning Tools
FamilyName
SRGCR-12-JHP
BrandName
Iscar
