DTGNR 12-3B

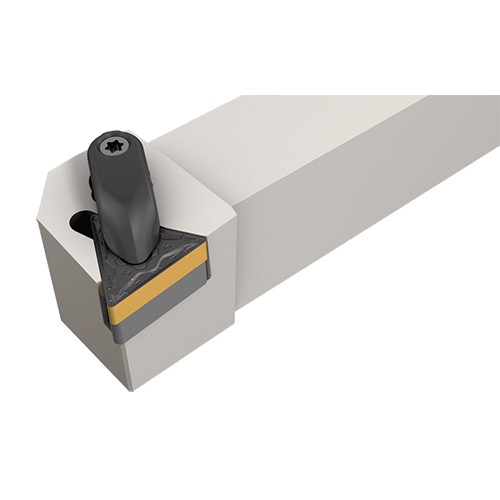

91° lead angle r-clamp external turning tools carrying negative triangular inserts.
Price: Log in For Price

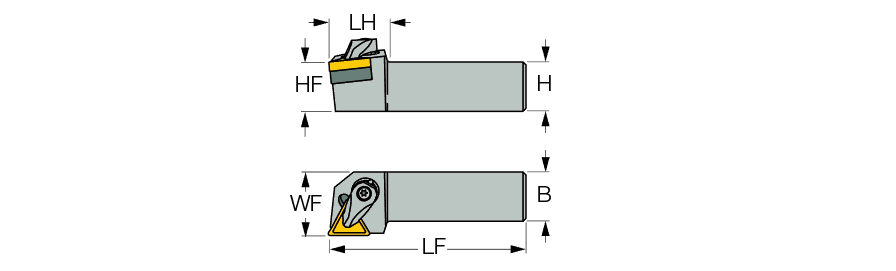

| Shank Height (H) | 3/4″ | Application | | Ext. 60° Triangle 91° Approach | |
| Shank Width (B) | 3/4″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Length (LF) | 4-1/2″ | Rake Angle Radial (GAMF) | -6 Degrees |
| Head Length (LH) | 0.98″ | Body Material | Steel |
| Functional Width (WF) | 1″ | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Unit | I |
| Master Insert Identification (MIID) | TN.. 3.. |
Product Features
| Family Description | 91° lead angle r-clamp external turning tools carrying negative triangular inserts. | FamilyName | DTGNR/L |
| COO | Korea | BrandName | Iscar |
Shipping Info
Weight per item
0.8245
Name
General Indexable Turning Tools
FamilyName
DTGNR/L
BrandName
Iscar
