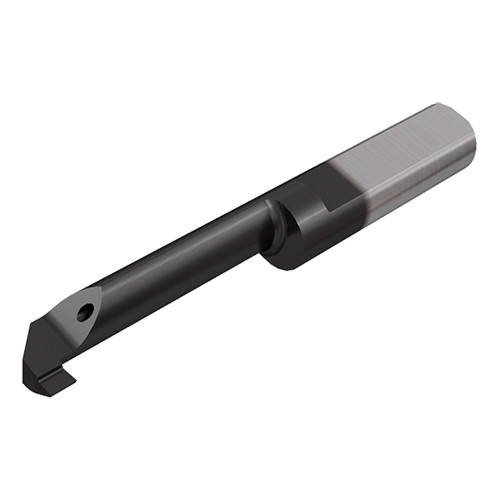

PICCO R 006.0100-15N IC908
Inserts with inner coolant channel for grooving and turning, Dmin 4 mm
Price: Log in For Price

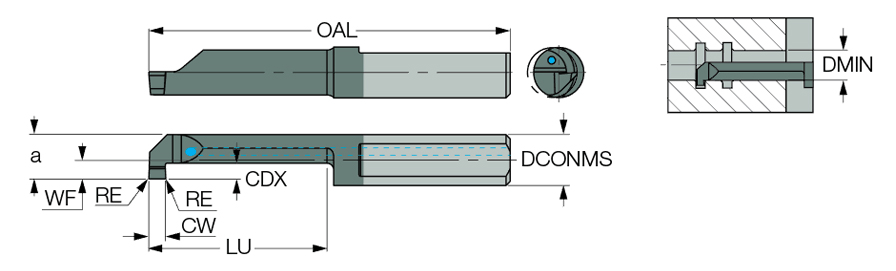

| Connection Diameter Machine Side (DCONMS) | 6.05 mm | Cutting Depth Maximum (CDX) | 1.8 mm |
| Minimum Bore Diameter (DMIN) | 6 mm | Functional Width (WF) | 2.3 mm |
| Functional Length (LF) | 36 mm | Usable Length (LU) | 14 mm |
| Cutting Direction (HAND) | Right Hand | Body Material | Carbide |
| Coating | TiAlN | Cutting Edge Material | Carbide |
| Grade | IC908 | Tool Type | Solid Carbide Turn Tool |
| Application | | Int. Groove & Turn | Int. Grooving | | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Width (CW) | 1 mm |
| Front End Width (a) | 5.3 mm | Unit | M |
| Corner Radius (RE) | 0 mm |
Product Features
| Family Description | Inserts with inner coolant channel for grooving and turning, Dmin 4 mm | FamilyName | PICCO R/L 002-007-N (Grooving and Turning) |
| Remarks | All carbide bars with sharp corners Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only | BrandName | Iscar |
| COO | Germany |
Shipping Info
Weight per item
0.0140
Name
Solid Boring Bars
FamilyName
PICCO R/L 002-007-N (Grooving and Turning)
BrandName
Iscar
