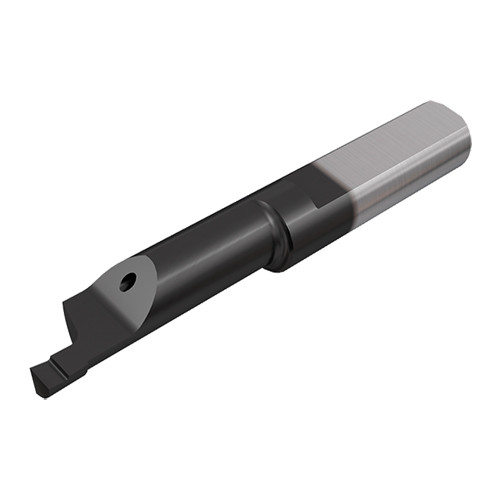

PICCO L 010.2008-30N IC908
Inserts with internal coolant channel for face grooving for Dmin 6 mm
Price: Log in For Price

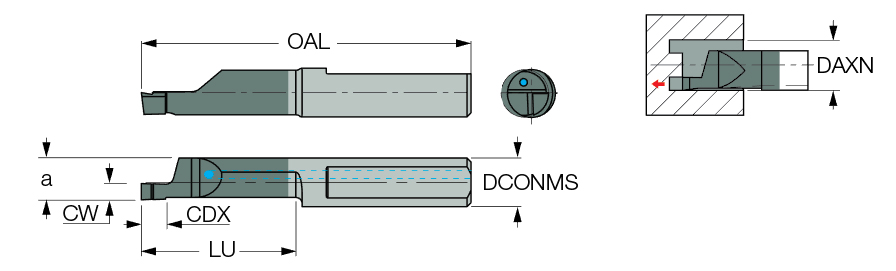

| Connection Diameter Machine Side (DCONMS) | 7.05 mm | Front End Width (a) | 5.9 mm |
| Functional Length (LF) | 51 mm | Usable Length (LU) | 29 mm |
| Cutting Direction (HAND) | Left Hand | Body Material | Carbide |
| Coating | TiAlN | Cutting Edge Material | Carbide |
| Grade | IC908 | Tool Type | Face Solid, Grooving &Turning grooving |
| Application | | Face Grooving | Int. Face Grooving | | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Unit | M |
Product Features
| Family Description | Inserts with internal coolant channel for face grooving for Dmin 6 mm | FamilyName | PICCO-010/610-N (Face Grooving) |
| Remarks | Only right-hand inserts are available as standard All inserts are with sharp corners Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only | BrandName | Iscar |
| COO | Germany |
Shipping Info
Weight per item
0.0240
Name
Solid Boring Bars
FamilyName
PICCO-010/610-N (Face Grooving)
BrandName
Iscar
