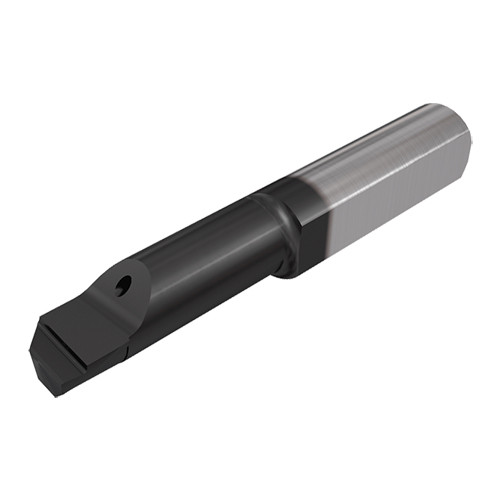

PICCO RX050.2-10R15 IC908
Reinforced boring inserts with internal coolant holes.
Price: Log in For Price

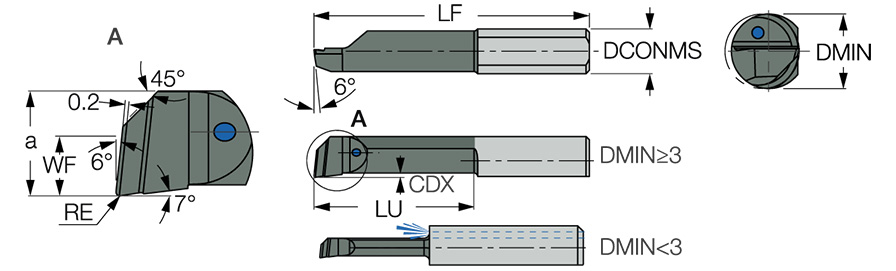

| Connection Diameter Machine Side (DCONMS) | 4 mm | Corner Radius (RE) | 0.15 mm |
| Minimum Bore Diameter (DMIN) | 2 mm | Cutting Depth Maximum (CDX) | 0.1 mm |
| Functional Length (LF) | 24 mm | Usable Length (LU) | 10 mm |
| Cutting Direction (HAND) | Right Hand | Body Material | Carbide |
| Coating | TiAlN | Cutting Edge Material | Carbide |
| Grade | IC908 | Tool Type | Solid Carbide Turn Tool |
| Application | | Int. Boring | | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Unit | M |
| Front End Width (a) | 1.8 mm |
Product Features

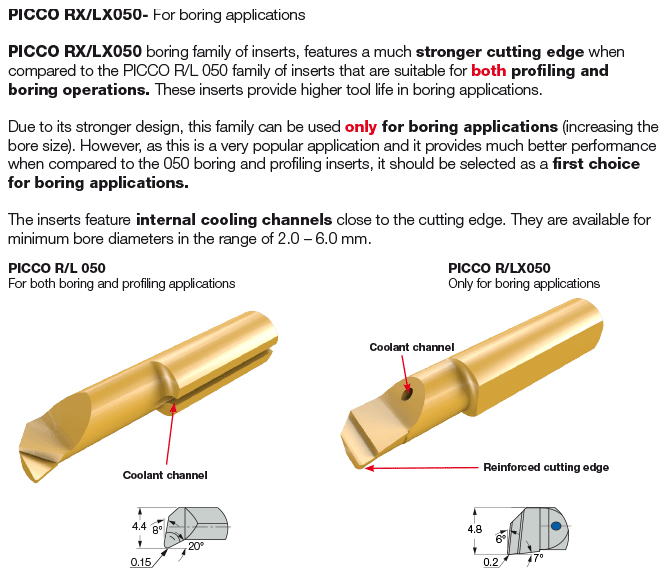

| Family Description | Reinforced boring inserts with internal coolant holes. | FamilyName | PICCO R/LX050 |
| Remarks | Left-hand inserts on request | BrandName | Iscar |
| COO | Germany |
Shipping Info
Weight per item
0.0070
Name
Solid Boring Bars
FamilyName
PICCO R/LX050
BrandName
Iscar
