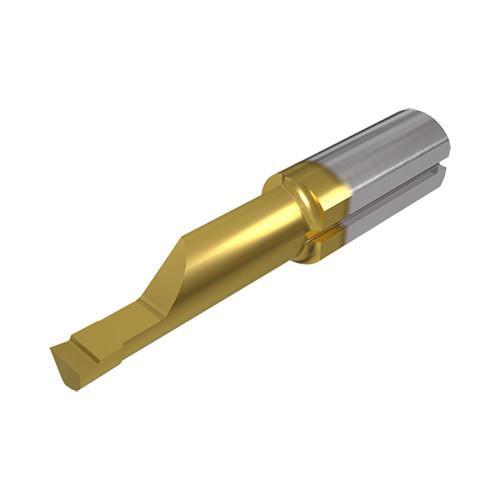

PICCO R 015.2515-20 IC228
PICCO mini inserts for deep face grooving at Dmin 15 mm
Price: Log in For Price

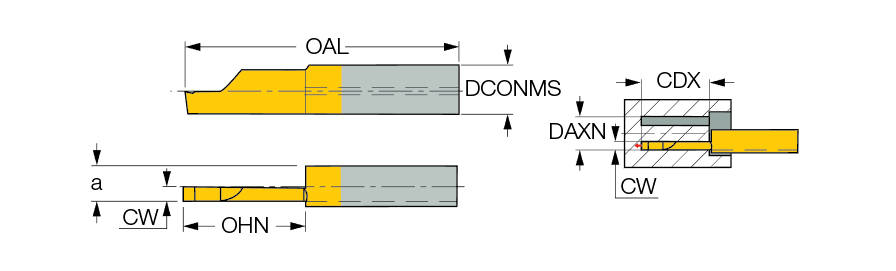

| Connection Diameter Machine Side (DCONMS) | 7 mm | Tool Type | Solid, Turning & Grooving |
| Cutting Width (CW) | 2.5 mm | Max. Face Grooving Feed (ffg(max)) | 0.04 mm/rev |
| Cutting Depth Maximum (CDX) | 19 mm | Min. Face Grooving Feed (ffg(min)) | 0.01 mm/rev |
| Overall Length (OAL) | 35 mm | Axial Groove Outside Diameter Minimum (DAXN) | 15 mm |
| Cutting Direction (HAND) | Right Hand | Front End Width (a) | 5.9 mm |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiCN+TiN | Body Material | Carbide |
| Grade | IC228 | Overhang Minimum (OHN) | 20 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Unit | M |
| Application | | Face Grooving | Int. Face Grooving | |
Product Features
| Family Description | PICCO mini inserts for deep face grooving at Dmin 15 mm | FamilyName | PICCO-015 (Face Grooving) |
| Remarks | Only right-hand inserts are available as standard, left-hand inserts on request All inserts are with sharp corners | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0130
Name
Solid and Brazed Groove/Turn & Part Off
FamilyName
PICCO-015 (Face Grooving)
BrandName
Iscar
