MTECB 0312C08 20UN IC908

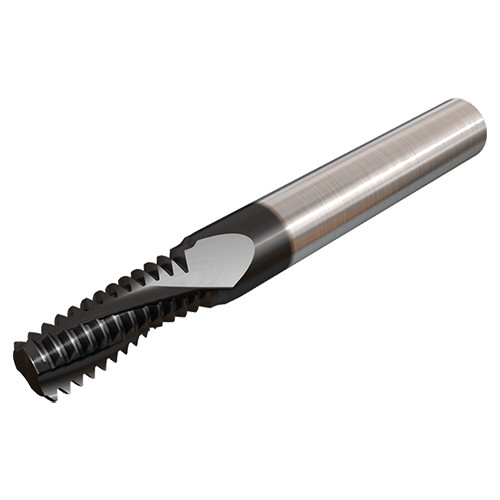

Solid carbide threading endmills with coolant holes for internal UN thread profile.
Price: Log in For Price
| Threads per Inch (TPI) | 20 | Flute Helix Angle (FHA) | 15 Degrees |
| Thread Standard | UNF |THFT | | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 0.313″ | Measurement Type | Inch |
| Cutting Diameter (DC) | 0.312″ | Grade | IC908 |
| Overall Length (OAL) | 2-1/2″ | Tool Type | Solid carbide thread mills |
| Flute Count (NOF) | 3 | Depth of Cut Maximum (APMX) | 0.83″ |
| Coolant Supply Property (CSP) | Coolant Thru | Body Material | Carbide |
| Shank Type | Round | Connection Code Machine Side (CCMS) | Cylindrical |
| Coating | TiAlN | Thread Form Type (THFT) | UN60 |
| Application | | Internal Thread Milling | | Unit | I |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | Solid carbide threading endmills with coolant holes for internal UN thread profile. | COO | Israel |
Shipping Info
Weight per item
0.0882
