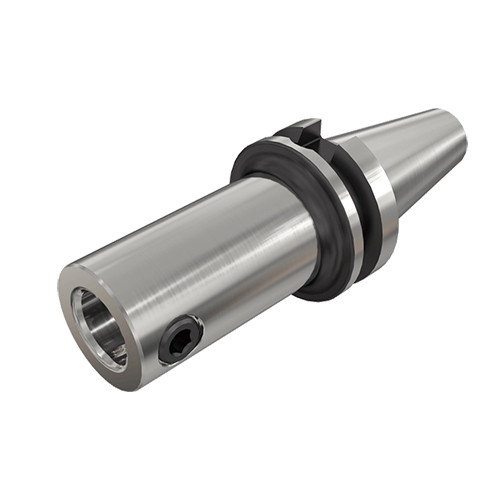

BT40 CF4-S
CLICK-FIT modular system connections with BT MAS-403 AD tapered shanks.
Price: Log in For Price

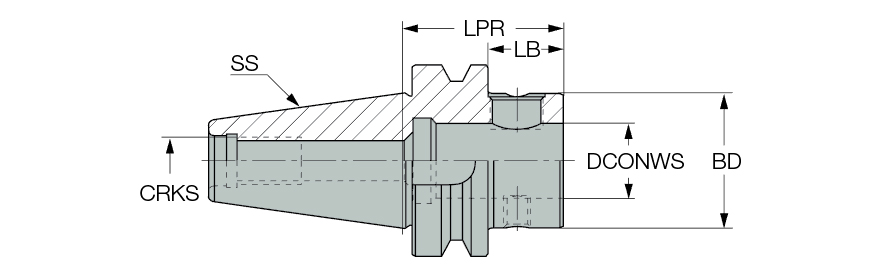

| Protruding Length (LPR) | 52 mm | Body Material | Steel |
| Connection Diameter Workpiece Side (DCONWS) | 25 mm | Connection Retention Knob Thread Size (CRKS) | M16 |
| Body Diameter (BD) | 44.5 mm | Shank Length (LS) | 65.4 mm |
| Body Length (LB) | 25 mm | Flange Diameter (DF) | 63 mm |
| Shank Size (SS) | 40 | Overall Length (OAL) | 117.4 mm |
| Tool Type | BT | Connection Code Machine Side (CCMS) | BT |
| Measurement Type | Metric | Unit | M |
Product Features
| Family Description | CLICK-FIT modular system connections with BT MAS-403 AD tapered shanks. | FamilyName | BT-CF (CLICK-FIT) |
| Remarks | For Adaptation Click on More Info. Tightening torque: 6 Kgxm | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.3900
Name
Adapters
FamilyName
BT-CF (CLICK-FIT)
BrandName
Iscar
