| Body Diameter (BD) | 16 mm | Body Material | Steel |
| Connection Diameter Minimum Workpiece Side (DCONNWS) | 20 mm | Application | | Int. Back Turning 80° Diamond | |
| Connection Diameter Maximum Workpiece Side (DCONXWS) | 25 mm | Tool Type | Indexble Boring heads |
| Body Length (LB) | 27.5 mm | Cutting Diameter Minimum (DCN) | 20 mm |
| Shank Size (SS) | MB16 | Measurement Type | Metric |
| Cutting Diameter Maximum (DCX) | 25 mm | Unit | M |
| Master Insert Identification (MIID) | CCMT 0602... |
Product Features

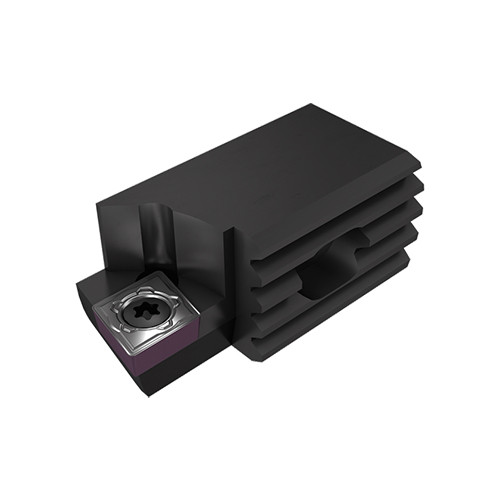

| Family Description | Back face turning toolholders for BHF fine boring heads. | COO | Italy |

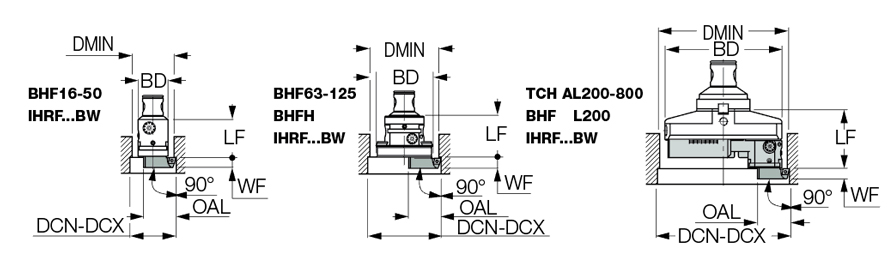

| Remarks | DMIN=(min bore diameter)=(DC+BD+1)/2 DC=Cut diameter BD=Size of the boring head being used |
Shipping Info
Weight per item
0.0200
