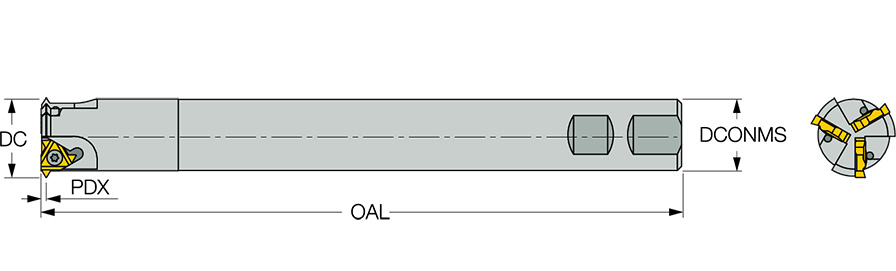

| Cutting Diameter (DC) | 0.925″ | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Application | | External Thread Milling | Internal Thread Milling | |
| Overall Length (OAL) | 7-1/2″ | Tool Type | Indexable thread mills |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Shank Type | Weldon | Connection Code Machine Side (CCMS) | Weldon |
| Body Material | Steel | Unit | I |
Product Features

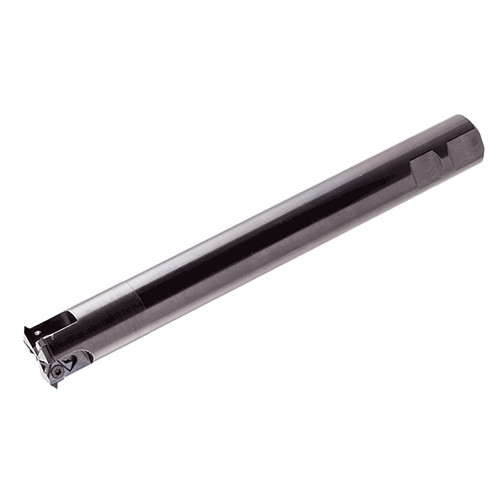

| Family Description | Indexable multi-insert threading endmills with Weldon shanks for single point inserts. | COO | Israel |
| Remarks | Minimum bore should be one-third larger than D |
Shipping Info
Weight per item
0.8730
