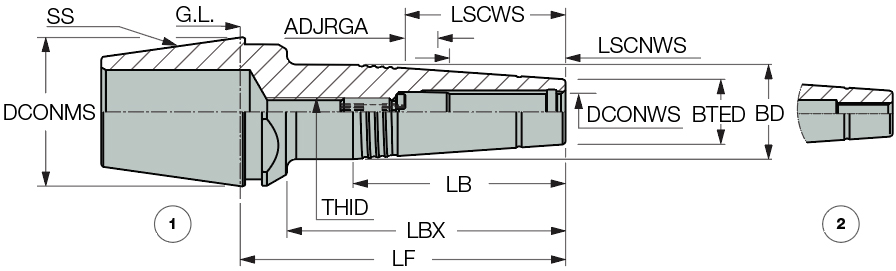

| Connection Diameter Machine Side (DCONMS) | 32 mm | Body Length Maximum (LBX) | 60 mm |
| Connection Diameter Workpiece Side (DCONWS) | 6 mm | Clamping Length Workpiece Side (LSCWS) | 27.4 mm |
| Shank Size (SS) | ER32 | Measurement Type | Metric |
| Body Length (LB) | 45 mm | Body Material | Steel |
| Body Diameter (BD) | 17.3 mm | Unit | M |
| Body Taper End Diameter (BTED) | 11 mm |
Product Features

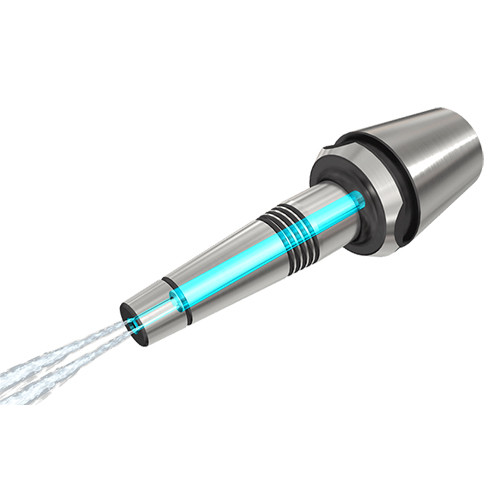

| Family Description | Thermal shrinking chucks with integral ER collet and jet coolant grooves, for solid carbide tools only. | FamilyName | ER-SRK-CX |
| Remarks | For carbide tools only For through tool coolant, preset screw must be removed | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.2180
Name
Shrink Fit Holders
FamilyName
ER-SRK-CX
BrandName
Iscar
