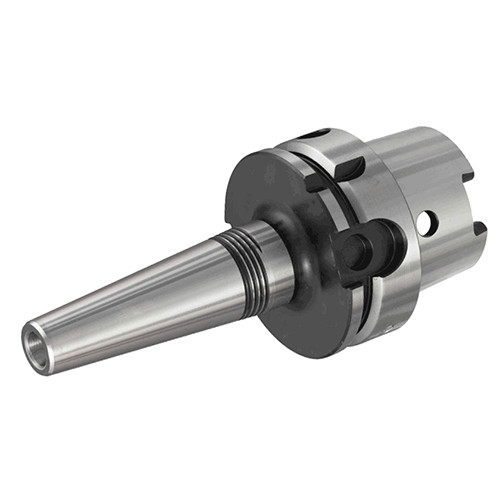

HSK A63 SRK 12X50
SHRINKIN, thermal chuck collets with HSK DIN69893 Form A tapered shanks for solid carbide tools only.
Price: Log in For Price

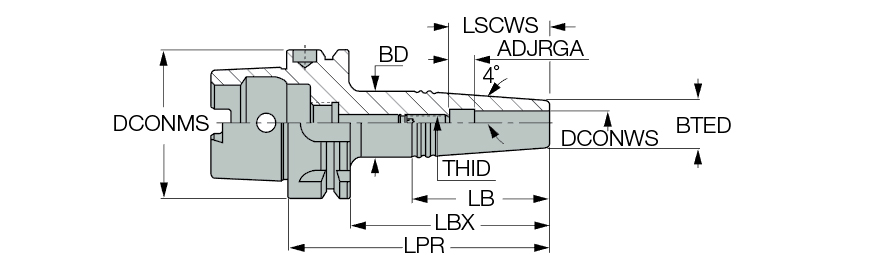

| Connection Diameter Machine Side (DCONMS) | 63 mm | Measurement Type | Metric |
| Connection Diameter Workpiece Side (DCONWS) | 12 mm | Tool Type | HSK |
| Shank Size (SS) | 63 | Body Material | Steel |
| Body Length (LB) | 50 mm | Connection Code Machine Side (CCMS) | HSK |
| Protruding Length (LPR) | 76 mm | Unit | M |
| Overall Length (OAL) | 108 mm |
Product Features
| Family Description | SHRINKIN, thermal chuck collets with HSK DIN69893 Form A tapered shanks for solid carbide tools only. | FamilyName | HSK A-SRK |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). To be used for carbide tools only. For shank dimensions, Click on More Info. Remove preset screw for coolant through. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.8450
Name
Shrink Fit Holders
FamilyName
HSK A-SRK
BrandName
Iscar
