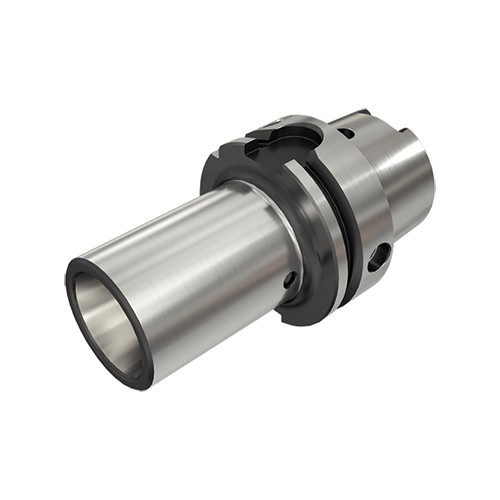

HSK A63 ER32 CLICK-IN
CLICKIN quick change connection adapters with HSK DIN 69893/A tapered shanks.
Price: Log in For Price

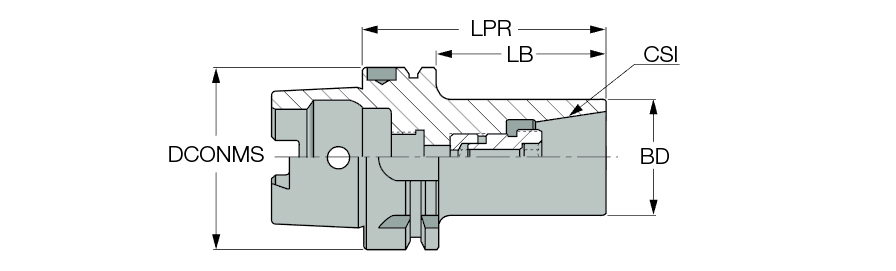

| Shank Size (SS) | 63 | Measurement Type | Metric |
| Connection Size (CSI) | 32 SRF | Body Material | Steel |
| Protruding Length (LPR) | 85 mm | Connection Code Machine Side (CCMS) | HSK |
| Connection Diameter Machine Side (DCONMS) | 63 mm | Unit | M |
| Tool Type | HSK |
Product Features
| Family Description | CLICKIN quick change connection adapters with HSK DIN 69893/A tapered shanks. | FamilyName | HSK A-ER-CLICK-IN |

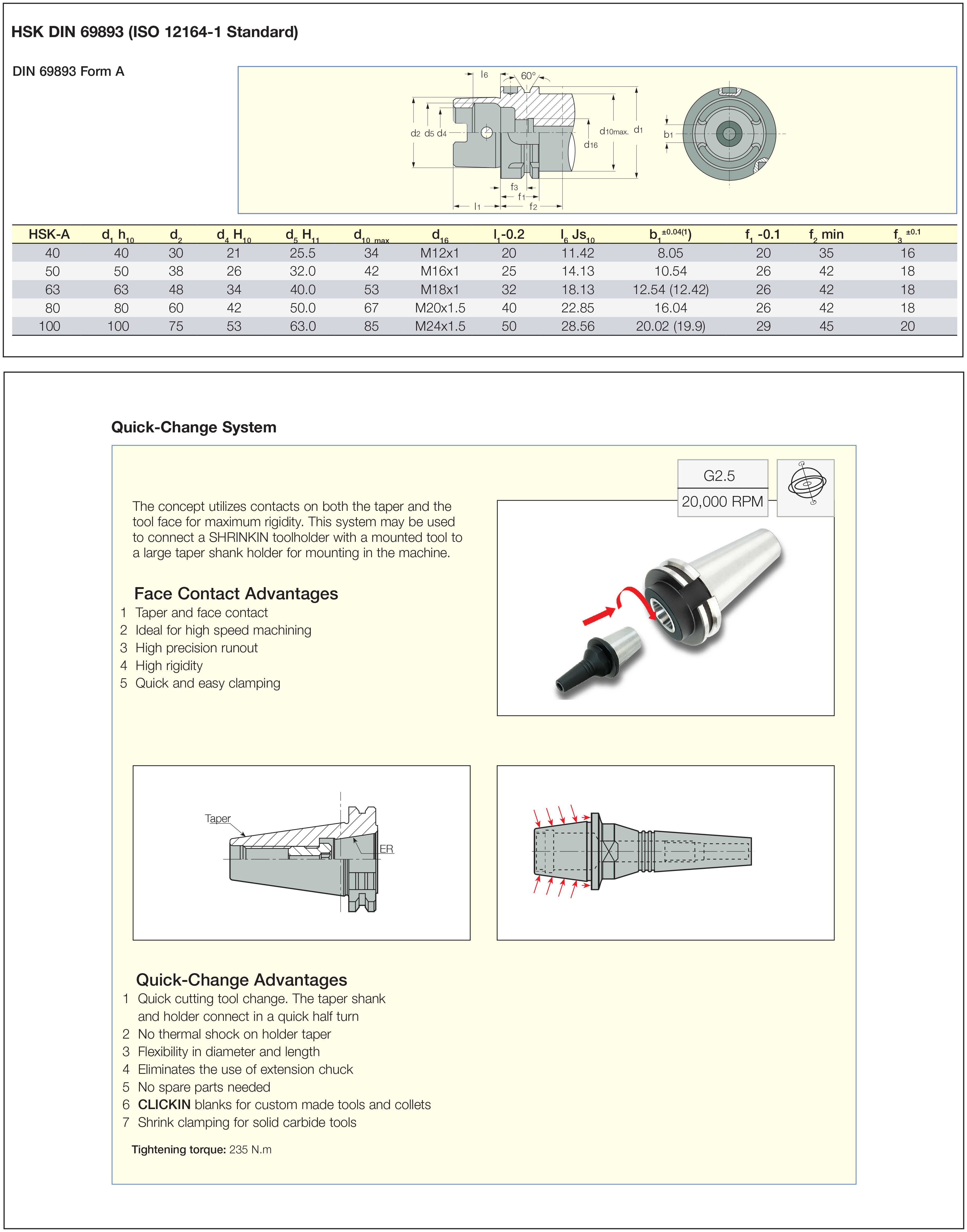

| Remarks | Tightening torque:24 Kgxm A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). For shank dimensions, Click on More Info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.1680
Name
Collet Chucks
FamilyName
HSK A-ER-CLICK-IN
BrandName
Iscar
