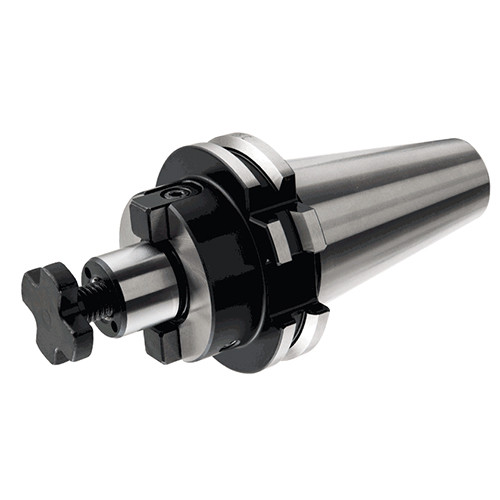

DIN69871 50 SEM16X100 C
ISO 3937 Shell mill holders with coolant holes and DIN 69871 form ADB tapered shanks.
Price: Log in For Price

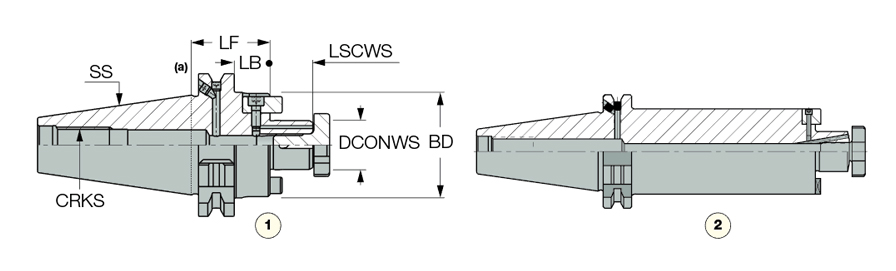

| Connection Diameter Machine Side (DCONMS) | 50 mm | Clamping Length Workpiece Side (LSCWS) | 17 mm |
| Connection Diameter Workpiece Side (DCONWS) | 16 mm | Tool Type | DIN 69871 |
| Shank Size (SS) | 50 | Measurement Type | Metric |
| Functional Length (LF) | 100 mm | Body Material | Steel |
| Body Diameter (BD) | 38 mm | Connection Code Machine Side (CCMS) | DIN69871 |
| Coolant Supply Property (CSP) | Coolant Thru | Unit | M |
Product Features
| Family Description | ISO 3937 Shell mill holders with coolant holes and DIN 69871 form ADB tapered shanks. | FamilyName | DIN69871-SEM-C |
| Remarks | (a) If the B type coolant option is required, the plug screw must be removed from the flange cooling hole (use a 2 mm hex key) | BrandName | Iscar |
| COO | Turkey |
Shipping Info
Weight per item
3.4810
Name
Shell Mill Holders
FamilyName
DIN69871-SEM-C
BrandName
Iscar
