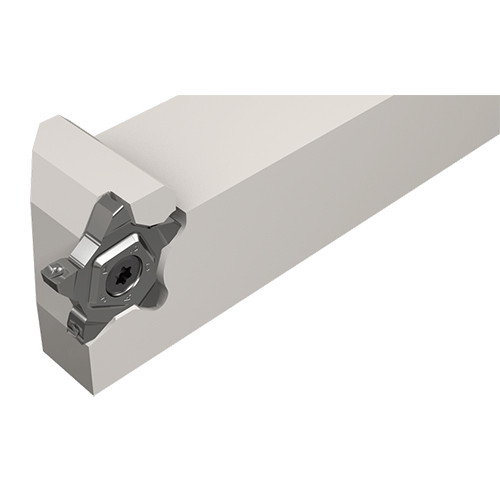

PCHR 25-24-8
Grooving, parting and recessing holders carrying inserts with 5 cutting edges.
Price: Log in For Price

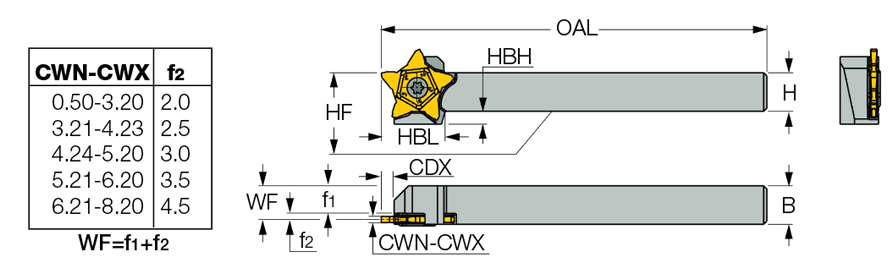

| Shank Height (H) | 25 mm | Application | | Ext. Grooving | Parting | Threading (Ext.) Groove Turn T | |
| Shank Width (B) | 25 mm | Body Material | Steel |
| Cutting Width Minimum (CWN) | 5.21 mm | Tool Type | Parting & Grooving Tools |
| Cutting Width Maximum (CWX) | 8.2 mm | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 135 mm | Measurement Type | Metric |
| Head Length (LH) | 19.5 mm | Tool Assembly Length (LTA) | 43.4 mm |
| Cutting Depth Maximum (CDX) | 6.5 mm | Unit | M |
Product Features
| Family Description | Grooving, parting and recessing holders carrying inserts with 5 cutting edges. | FamilyName | PCHR/L-24 |
| Remarks | WF=f1+f2 (according to insert width (CW) being used) | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.6690
Name
Parting Off Indexable Holders
FamilyName
PCHR/L-24
BrandName
Iscar
