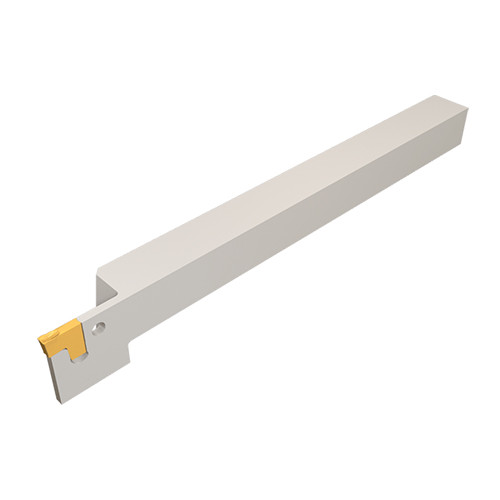

TGTL 1616-2T18SH-L120-IQ
Integral shank tools with a very rigid clamping. Enables machining at very high feed rates and provides excellent straightness and surface finish. Recommended for parting interrupted cuts. Excellent tool and pocket life.
Price: Log in For Price

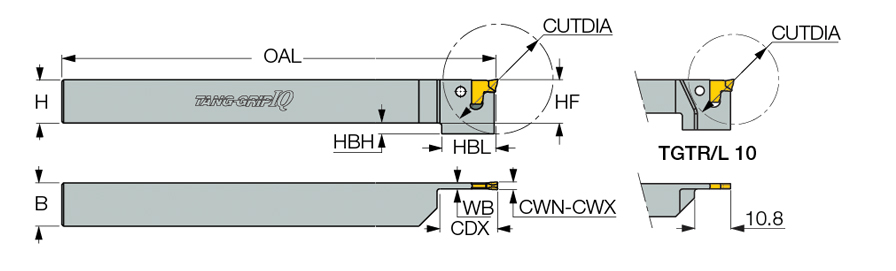

| Shank Height (H) | 16 mm | Body Material | Steel |
| Shank Width (B) | 16 mm | Tool Type | Parting & Grooving Tools |
| Body Width (WB) | 1.65 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 36 mm |
| Cutting Width Minimum (CWN) | 1.8 mm | Cutting Direction (HAND) | Left Hand |
| Cutting Width Maximum (CWX) | 2.5 mm | Measurement Type | Metric |
| Overall Length (OAL) | 120 mm | Tool Assembly Length (LTA) | 0 mm |
| Cutting Depth Maximum (CDX) | 18 mm | Unit | M |
| Application | | Ext. Grooving | Parting | |
Product Features
| Family Description | Integral shank tools with a very rigid clamping. Enables machining at very high feed rates and provides excellent straightness and surface finish. Recommended for parting interrupted cuts. Excellent tool and pocket life. | FamilyName | TGTR/L-2T..SH-L120 |

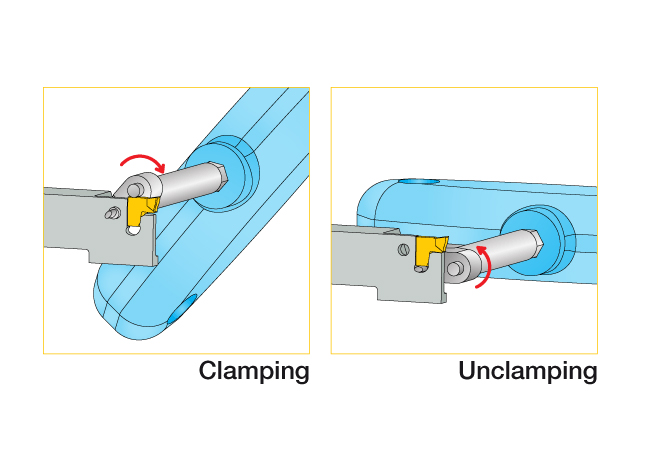

| Remarks | For clamping and unclamping click on More info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.2260
Name
Parting Off Indexable Holders
FamilyName
TGTR/L-2T..SH-L120
BrandName
Iscar
