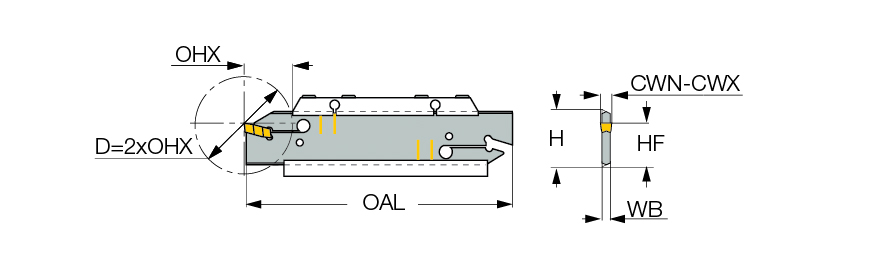

| Shank Height (H) | 32 mm | Body Material | Steel |
| Body Width (WB) | 5.2 mm | Tool Type | Blades and adapters for Parting & Grooving |
| Cutting Width Minimum (CWN) | 5.5 mm | Cutting Direction (HAND) | Neutral |
| Cutting Width Maximum (CWX) | 6.4 mm | Measurement Type | Metric |
| Overall Length (OAL) | 150 mm | Body Width_2 (WB_2) | 5.2 mm |
| Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | Threading (Ext.) Groove Turn T | | Tool Assembly Length (LTA) | 49 mm |
| Number of Pocket (NOP) | 2 | Unit | M |
Product Features

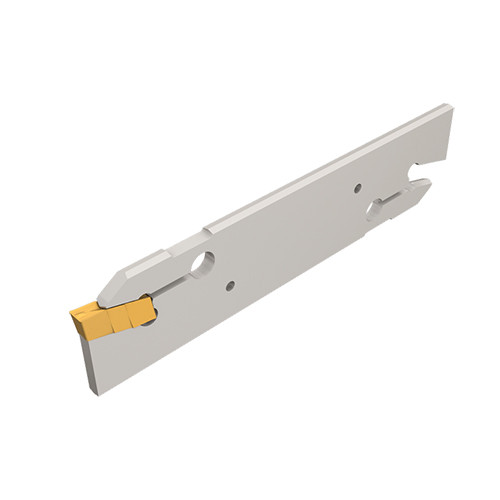

| Family Description | Double-ended blades for external grooving and turning. | FamilyName | CGHN-D |
| Remarks | Use the yellow lines on blade for min. and max. overhang When using TIP inserts, toolholder seat needs to be modified according to insert profile to ensure clearance When using a double-ended insert, grooving depth is limited by the insert When using GIVR/L inserts, tool holder's seat needs to be modified | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.1750
Name
Parting Off Indexable Holders
FamilyName
CGHN-D
BrandName
Iscar
Related Documentation
Adjustable blades for external grooving and turning. For insert width range 2.8 to 6.4 mm. Can be mounted on any standard block with the same height (B).
