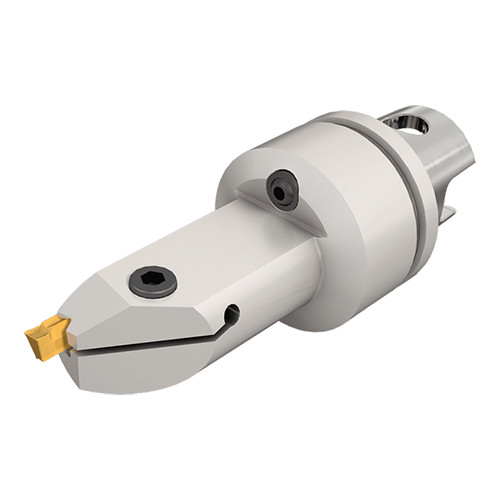

IM50 HFIR-MC
Tools for internal grooving and turning with ISO 26622-1(*) tapered shank
Price: Log in For Price

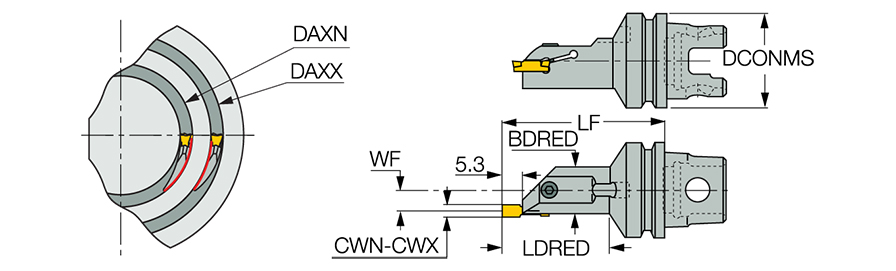

| Cutting Depth Maximum (CDX) | 5.3 mm | Application | | Face Grooving | Face Grooving & Turning | Int. Face Grooving | Int. Face Recessing | |
| Cutting Width (CW) | 4 mm | Tool Type | Face Turning & grooving Tools |
| Cutting Width Maximum (CWX) | 6 mm | Body Material | Steel |
| Cutting Width Minimum (CWN) | 3 mm | Functional Width (WF) | 11.3 mm |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
| Overall Length (OAL) | 112 mm | Unit | M |
| Connection Diameter Machine Side (DCONMS) | 50 mm |
Product Features
| Family Description | Tools for internal grooving and turning with ISO 26622-1(*) tapered shank | FamilyName | IM-HFIR-MC |

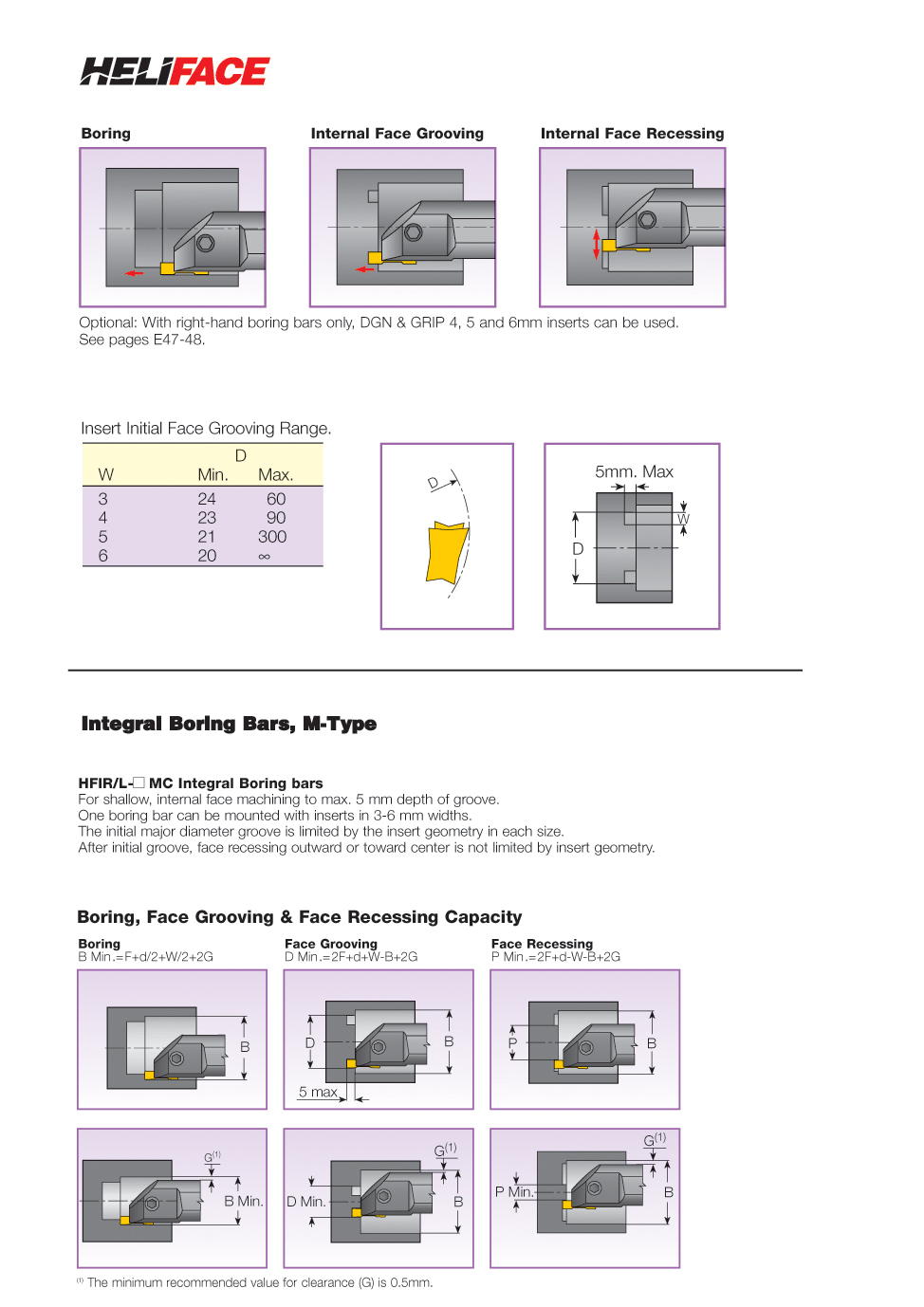

| Remarks | (*) Tools with orientation holes in the flange groove can be supplied on request DGN & GRIP 4.. - 6.. inserts can be used only with right-hand tools, HGPL 4.. - 6.. inserts with left-hand tools After initial groove, no limitation to widening groove outward or toward center | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.6650
Name
Face Groove/Turn Indexable Holders
FamilyName
IM-HFIR-MC
BrandName
Iscar
