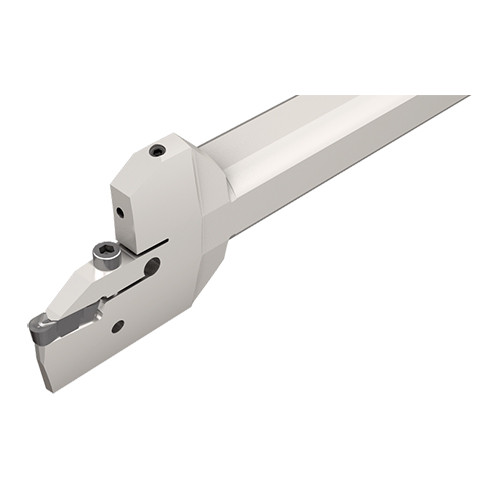

GHIFR 38.1C-8A-8
8° and 10° approach angle boring bars used for facing and internal machining.
Price: Log in For Price

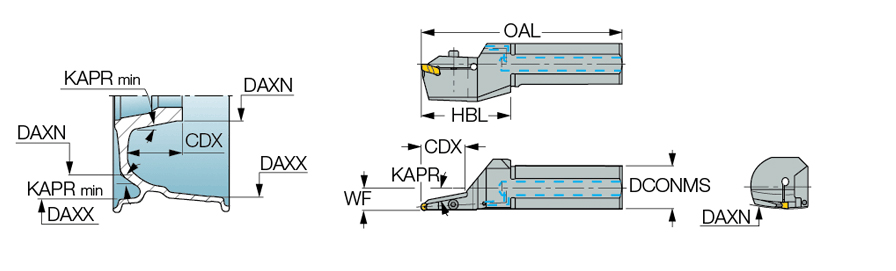

| Cutting Depth Maximum (CDX) | 2.756″ | Application | | Int. Machining Aluminum Wheels | |
| Minimum Bore Diameter (DMIN) | 11.8″ | Body Material | Steel |
| Functional Width (WF) | 0.73″ | Tool Type | Indexable Turn & Groov Tools |
| Overall Length (OAL) | 13″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Unit | I |
Product Features
| Family Description | 8° and 10° approach angle boring bars used for facing and internal machining. | FamilyName | GHIFR-A |
| Remarks | Upper jaw with hard coating to sustain chip deflection | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
5.5115
Name
Groove/Turn Indexable Holders
FamilyName
GHIFR-A
BrandName
Iscar
