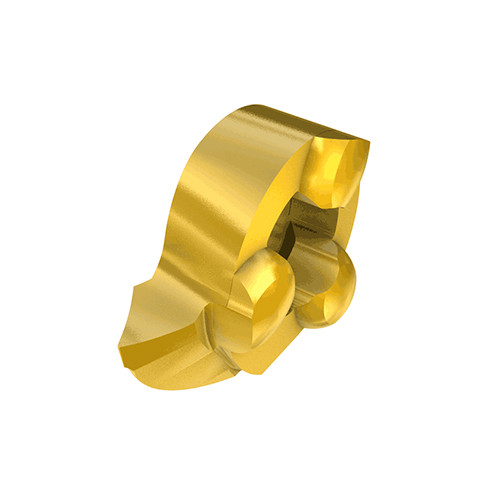

GIQR 8-MT-0.05 IC528
Internal threading inserts with a 60° partial profile for threading in 8 mm and larger holes.
Price: Log in For Price
| Thread Standard | THFT | | Cutting Edge Length (L) | 7.78 mm |
| Corner Radius (RE) | 0.05 mm | Tool Type | Groove-Turn Precision Inserts |
| Grade | IC528 | Threads per Inch Maximum (TPIX) | 50 |
| Coating | TiCN+TiN | Threads per Inch Minimum (TPIN) | 16 |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Application | | Threading (Int.) | | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Thread Form Type (THFT) | VP60 |
| Thread Pitch Minimum (TPN) | 0.5 mm | Unit | M |
| Thread Pitch Maximum (TPX) | 1.59 mm |
Product Features
| Family Description | Internal threading inserts with a 60° partial profile for threading in 8 mm and larger holes. | FamilyName | GIQR/L-MT |
| Remarks | Can be used for thread milling by circular interpolation Pitch max 0.19xD D-diameter of thread DIN13 , ISO 68-1, ISO 965 (1&2) - Internal tolerance: 6H ANSI/ASME B1.1 - Internal tolerance: 2B | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0021
Name
On-Edge Threading Indexable Inserts
FamilyName
GIQR/L-MT
BrandName
Iscar
