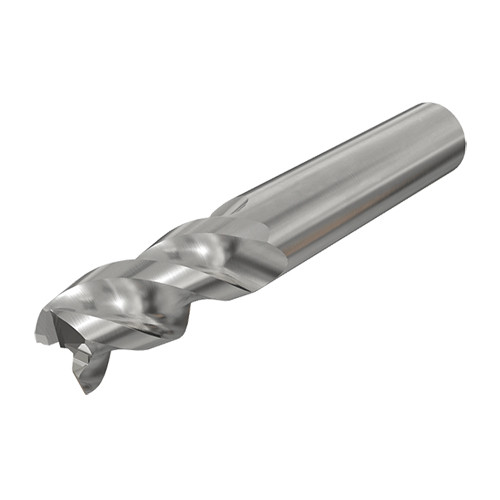

ECA-B-3 10-25C10R3-72 IC08
3 flute, 45° helix medium length solid carbide endmills. Used for machining aluminum.
Price: Log in For Price

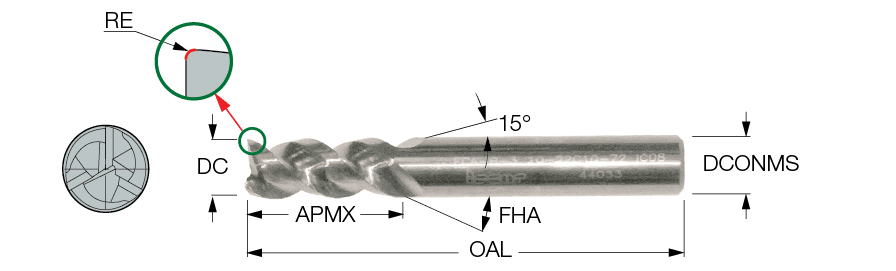

| Cutting Diameter (DC) | 10 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Grade | IC08 |
| Depth of Cut Maximum (APMX) | 25 mm | Body Half Taper Angle (BHTA) | 0 Degrees |
| Overall Length (OAL) | 72 mm | Tool Type | Solid carbide center cutting endmills 90° |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.1 mm/tooth |
| Coating | Uncoated | Minimum Feed per Tooth (fz(min)) | 0.03 mm/tooth |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 45 Degrees | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
| End Shape | Corner Radius | Connection Code Machine Side (CCMS) | Cylindrical |
| Usable Length (LU) | 25 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Cutting Diameter Tolerance | h6 |
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Unit | M |
| Corner Radius (RE) | 3 mm |
Product Features
| Family Description | 3 flute, 45° helix medium length solid carbide endmills. Used for machining aluminum. | FamilyName | ECA-B-3 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0730
Name
Square & Corner Radius End Mills
FamilyName
ECA-B-3
BrandName
Iscar
