EFS-B44 12-26SL12-83 IC900

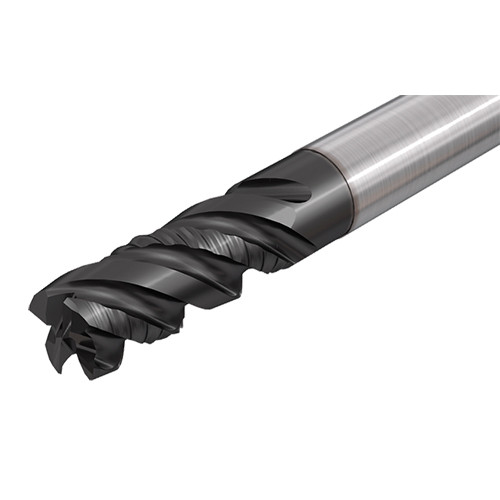

Solid carbide endmills with 4 flute, medium length and 45° helix, featuring a combination of roughing and finishing with a single tool.
Price: Log in For Price

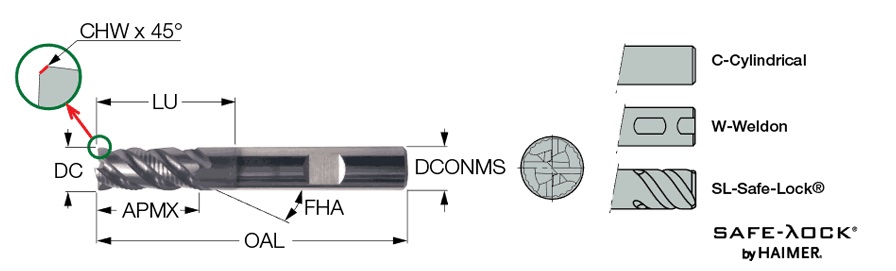

| Cutting Diameter (DC) | 12 mm | Corner Chamfer Width (CHW) | 0.4 mm |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 26 mm | Grade | IC900 |
| Overall Length (OAL) | 83 mm | Tool Type | Solid carbide center cutting endmills 90° |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.1 mm/tooth |
| Coating | AlTiN | Minimum Feed per Tooth (fz(min)) | 0.04 mm/tooth |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 45 Degrees | Body Material | Carbide |
| Shank Type | SL | Measurement Type | Metric |
| End Shape | Chamfer | Connection Code Machine Side (CCMS) | Cylindrical |
| Usable Length (LU) | 26 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Diameter Tolerance | e8 |
| Application | | Counter Boring | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Unit | M |
Product Features
| Family Description | Solid carbide endmills with 4 flute, medium length and 45° helix, featuring a combination of roughing and finishing with a single tool. | ItemRemark | Safe-Lock® by Haimer, helical grooves that prevent pull-out |
| Remarks | Minimum width of cut for semi-finishing operations>= 0.05 x DC | FamilyName | EFS-B44 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Name
Square & Corner Radius End Mills
FamilyName
EFS-B44
BrandName
Iscar
