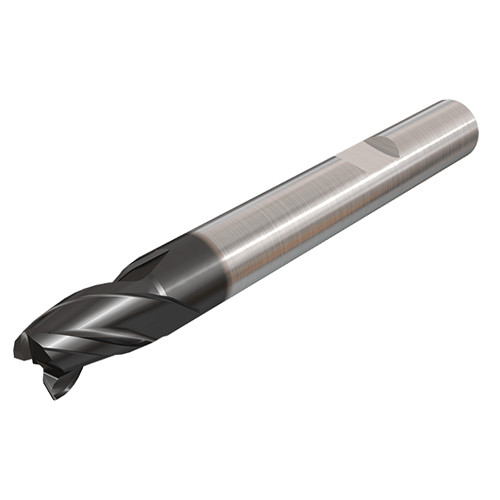

ECU038E05-3W06-57 IC900
3 flute, 38° helix short undersized slot / drill solid carbide endmills.
Price: Log in For Price

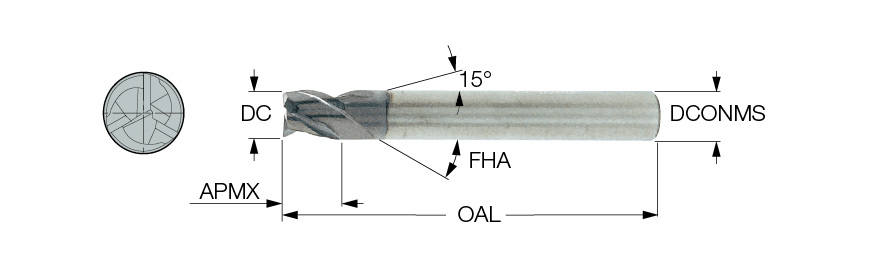

| Cutting Diameter (DC) | 3.8 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Grade | IC900 |
| Depth of Cut Maximum (APMX) | 5 mm | Neck Diameter (DN) | 3.83 mm |
| Overall Length (OAL) | 57 mm | Body Half Taper Angle (BHTA) | 15 Degrees |
| Cutting Edge Material | Carbide | Tool Type | Solid carbide center cutting endmills 90° |
| Coating | AlTiN | Maximum Feed per Tooth (fz(max)) | 0.04 mm/tooth |
| Flute Count (NOF) | 3 | Minimum Feed per Tooth (fz(min)) | 0.01 mm/tooth |
| Flute Helix Angle (FHA) | 38 Degrees | Coolant Supply Property (CSP) | External |
| Shank Type | Weldon | Body Material | Carbide |
| End Shape | Corner Radius | Measurement Type | Metric |
| Usable Length (LU) | 8 mm | Connection Code Machine Side (CCMS) | Weldon |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Shank Diameter Tolerance (TCDMM) | h6 |
| Application | | Counter Boring | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Cutting Diameter Tolerance | e8 |
| Corner Radius (RE) | 0 mm | Unit | M |
Product Features
| Family Description | 3 flute, 38° helix short undersized slot / drill solid carbide endmills. | FamilyName | ECU-E-3 |
| Remarks | Undersized short design for keyholes | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0240
Name
Square & Corner Radius End Mills
FamilyName
ECU-E-3
BrandName
Iscar
