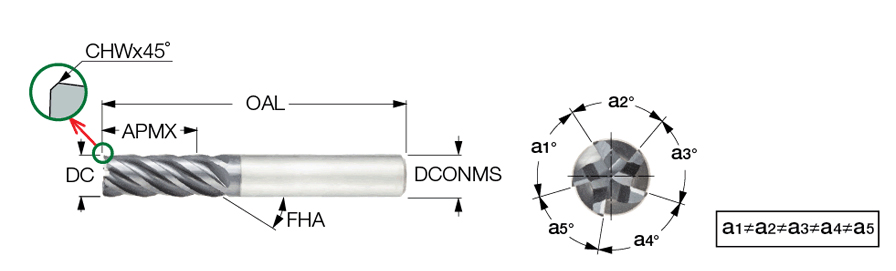

| Cutting Diameter (DC) | 10 mm | Corner Chamfer Width (CHW) | 0.3 mm |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 25 mm | Grade | IC900 |
| Overall Length (OAL) | 72 mm | Tool Type | Solid carbide non center cutting endmills 90° |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.1 mm/tooth |
| Coating | AlTiN | Minimum Feed per Tooth (fz(min)) | 0.03 mm/tooth |
| Flute Count (NOF) | 5 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 38 Degrees | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
| End Shape | Chamfer | Connection Code Machine Side (CCMS) | Cylindrical |
| Usable Length (LU) | 25 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Diameter Tolerance | e8 |
| Application | | Counter Boring | Drill Mill | Helical Interpolation | Rampdown | Shouldering | Slotting | | Unit | M |
Product Features

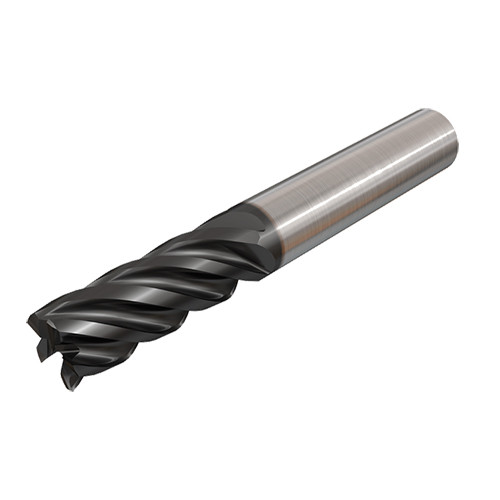

| Family Description | 5 flute, 38° helix with variable pitch endmills for roughing and finishing operations. High material removal rates chatter free. Used for machining alloyed and stainless steel, titanium and exotic materials. Full slot milling - up to 3xD | FamilyName | EC-E5L-CF |

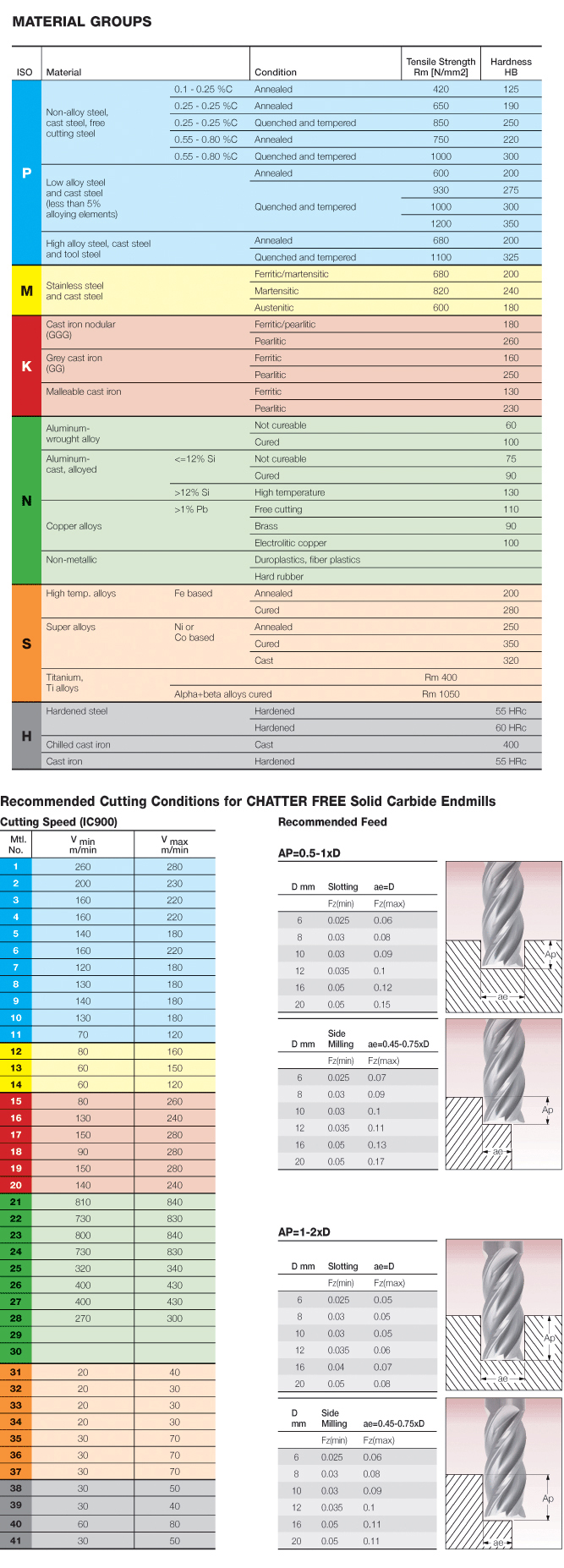

| Remarks | For recommended feed, Click on More Info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0770
Name
Square & Corner Radius End Mills
FamilyName
EC-E5L-CF
BrandName
Iscar
