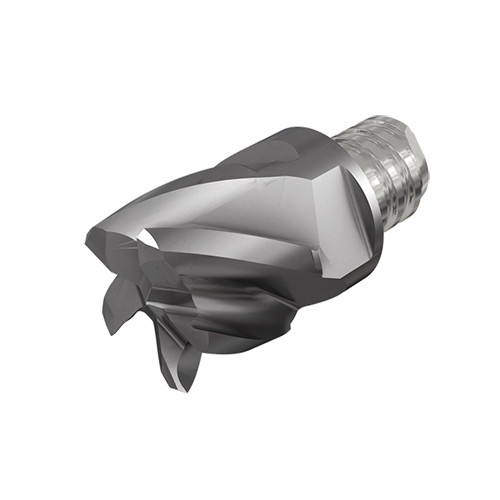

MM EC250H22C6-5T15CF IC908
Interchangeable carbide heads. 5 flute with different helix (35 - 41°) and variable pitch for roughing and finishing operations. High material removal rates CHATTERFREE, for machining high temperature alloys such as titanium and inconel.
Price: Log in For Price
| Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | | Coating | TiAlN |

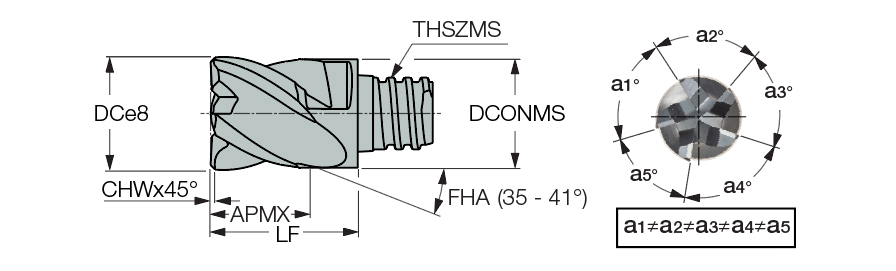

| Cutting Diameter (DC) | 25 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Corner Chamfer Width (CHW) | 0.6 mm |
| Flute Count (NOF) | 5 | Measurement Type | Metric |
| Corner Radius (RE) | 0 mm | Maximum Feed per Tooth (fz(max)) | 0.17 mm/tooth |
| Connection Thread Nominal Size Machine Side (THSZMS) | T15 | Cutting Edge Material | Carbide |
| Cutting Diameter Maximum (DCX) | 25 mm | Ramping Angle Maximum (RMPX) | 3 Degrees |
| Depth of Cut Maximum (APMX) | 22 mm | Tool Type | Solid carbide non center cutting endmills 90° |
| Connection Diameter Machine Side (DCONMS) | 23.9 mm | Body Material | Carbide |
| Functional Length (LF) | 37 mm | Connection Code Machine Side (CCMS) | MultiMaster |
| Flute Helix Angle (FHA) | 38 Degrees | Minimum Feed per Tooth (fz(min)) | 0.06 mm/tooth |
| Overall Length (OAL) | 54.6 mm | Unit | M |
| Grade | IC908 |
Product Features
| Family Description | Interchangeable carbide heads. 5 flute with different helix (35 - 41°) and variable pitch for roughing and finishing operations. High material removal rates CHATTERFREE, for machining high temperature alloys such as titanium and inconel. | FamilyName | MM EC-H-5-CF |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.2340
Name
Solid End Mill Heads
FamilyName
MM EC-H-5-CF
BrandName
Iscar
