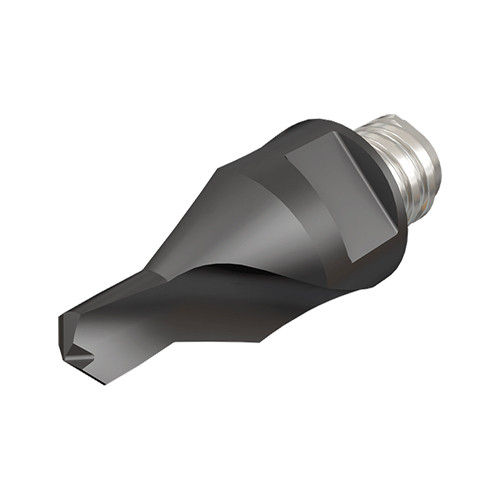

MM ECS-A3.15X08-2T05 IC908
Interchangeable solid carbide centering drills (DIN 332).
Price: Log in For Price
| Application | | Countersinking | Drilling | | Grade | IC908 |
| Cutting Diameter (DC) | 3.28 mm | Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Metric |
| Flute Count (NOF) | 2 | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T05 | Tool Type | center & Spot Drills |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Body Material | Carbide |
| Functional Length (LF) | 15 mm | Unit | M |
| Overall Length (OAL) | 22.1 mm |
Product Features
| Family Description | Interchangeable solid carbide centering drills (DIN 332). | FamilyName | MM ECS |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0135
Name
Solid End Mill Heads
FamilyName
MM ECS
BrandName
Iscar
