EBM004A008-2C03 IC900
2 flute, 30° helix medium length solid carbide miniature ball nose endmills.
Price: Log in For Price

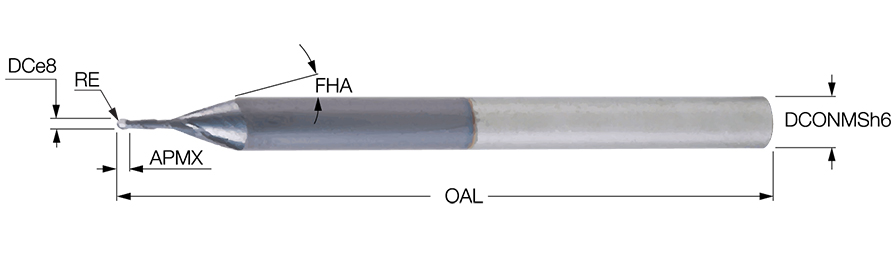

| Cutting Diameter (DC) | 0.4 mm | Application | | Profiling | |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Corner Radius (RE) | 0.2 mm |
| Depth of Cut Maximum (APMX) | 0.8 mm | Grade | IC900 |
| Overall Length (OAL) | 38 mm | Tool Type | Solid ball nose |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | AlTiN | Body Material | Carbide |
| Flute Count (NOF) | 2 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 30 Degrees | Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Type | Round | Unit | M |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | 2 flute, 30° helix medium length solid carbide miniature ball nose endmills. | FamilyName | EBM-A-2 |
| Remarks | Short and stable design for profiling (roughing) | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0110
Name
Ballnose End Mills
FamilyName
EBM-A-2
BrandName
Iscar
