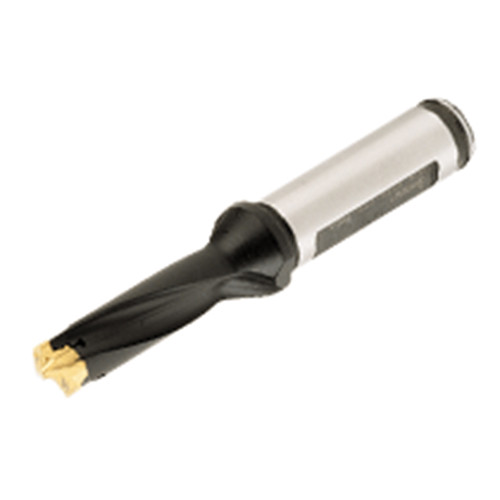

DCM 0591-177-075A-3D
Drill body with exchangeable heads, internal coolant holes and one flat shank. Drilling depth: 3xD
Price: Log in For Price

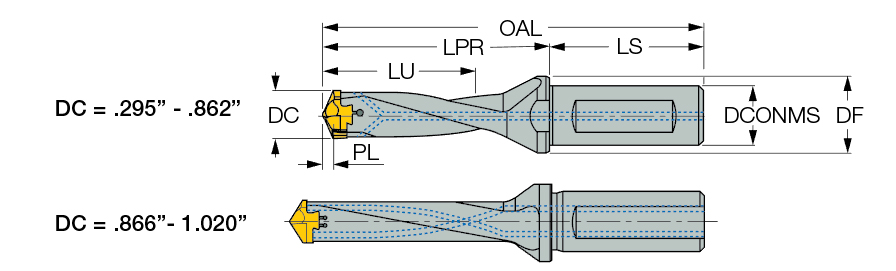

| Cutting Diameter (DC) | 0.591″ | Shank Length (LS) | 1.97″ |
| Usable Length (LU) | 1.77″ | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Drilling | | Measurement Type | Inch |
| Tool Type | Indexable Insert Drills | Master Insert Identification (MIID) | IDI 150-SG |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Point Length (PL) | 0.107″ |
| Insert Seat Size Code (SSC) | 15.0 | Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 0.591″ | Flange Diameter (DF) | 0.98″ |
| Cutting Diameter Maximum (DCX) | 5/8″ | Decimal Equivalent | 0.591″ |
| Protruding Length (LPR) | 2.58″ | Body Diameter Reduced (BDRED) | 0.98″ |
| Functional Length (LF) | 2.473″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Overall Length (OAL) | 4.55″ | Unit | I |
Product Features
| Family Description | Drill body with exchangeable heads, internal coolant holes and one flat shank. Drilling depth: 3xD | COO | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body Drill tolerance: k7 |
Shipping Info
Weight per item
0.5027
