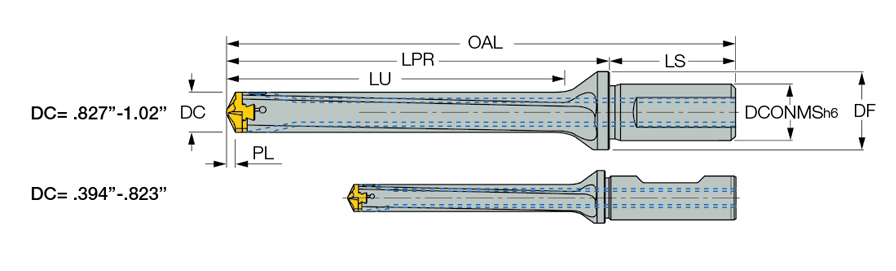

| Cutting Diameter (DC) | 0.709″ | Shank Length (LS) | 2.2″ |
| Usable Length (LU) | 5.67″ | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Drilling | | Measurement Type | Inch |
| Tool Type | indexable head drills | Master Insert Identification (MIID) | IDI 180-SG |
| Connection Diameter Machine Side (DCONMS) | 1″ | Point Length (PL) | 0.129″ |
| Insert Seat Size Code (SSC) | 18.0 | Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 0.709″ | Flange Diameter (DF) | 1.26″ |
| Cutting Diameter Maximum (DCX) | 0.744″ | Decimal Equivalent | 0.709″ |
| Protruding Length (LPR) | 6.62″ | Body Diameter Reduced (BDRED) | 1.26″ |
| Functional Length (LF) | 6.491″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Overall Length (OAL) | 8.82″ | Unit | I |
Product Features

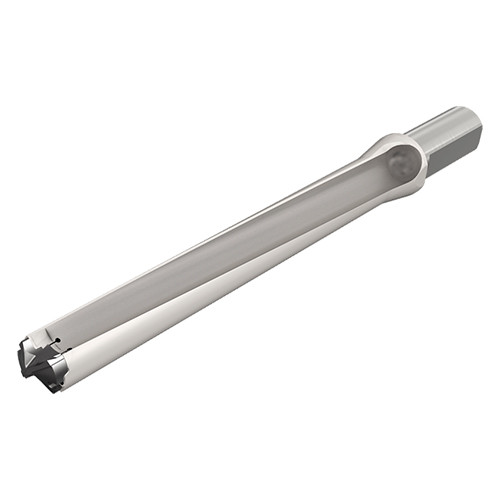

| Family Description | Drill body with exchangeable heads, internal coolant holes and one flat shank. Drilling depth: 8xD | COO | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body Drill tolerance: k7 |
Shipping Info
Weight per item
1.0185
