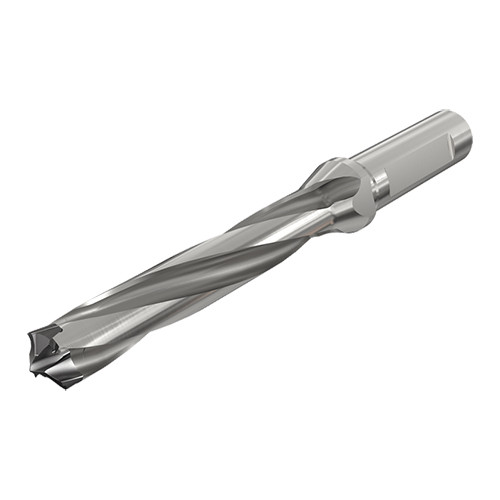

D3N 230-115-32A-5D
Exchangeable head 3 flute drills with coolant holes and one flat shank, drilling depth 5xD
Price: Log in For Price

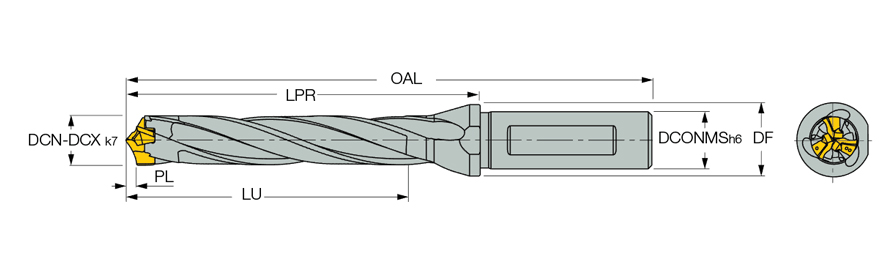

| Cutting Diameter (DC) | 23 mm | Overall Length (OAL) | 222.5 mm |
| Usable Length (LU) | 119.91 mm | Shank Length (LS) | 60 mm |
| Shank Type | Weldon | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Drilling | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Master Insert Identification (MIID) | H3P 230 |
| Insert Seat Size Code (SSC) | 23 | Point Length (PL) | 4.91 mm |
| Cutting Diameter Minimum (DCN) | 23 mm | Body Material | Steel |

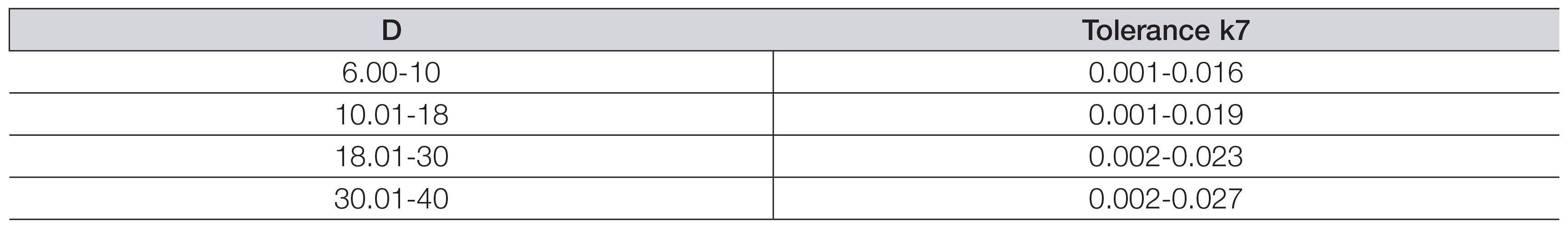

| Cutting Diameter Maximum (DCX) | 23.9 mm | Flange Diameter (DF) | 42 mm |
| Protruding Length (LPR) | 162.5 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Functional Length (LF) | 157.59 mm | Unit | M |
Product Features
| Family Description | Exchangeable head 3 flute drills with coolant holes and one flat shank, drilling depth 5xD | COO | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Weight per item
0.7480
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
