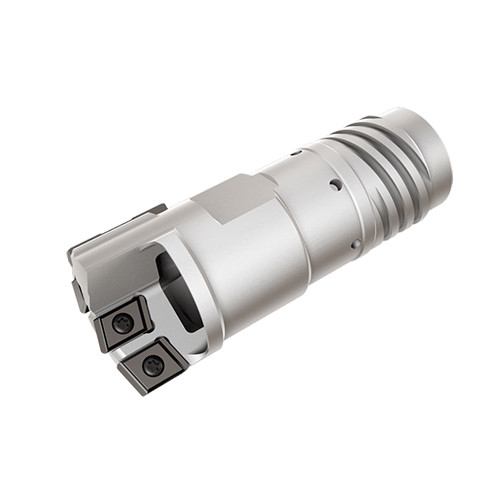

DDD-EF 39.61-43.00-FB
Deep double tube drills with external 4-Start Thread Connection for high feed. Each item represents a diameter range. For a specific head diameter, an order form should be filled out.
Price: Log in For Price
| Application | | Deep Drilling | | Cutting Diameter Minimum (DCN) | 39.61 mm |
| Connection Diameter Machine Side (DCONMS) | 36 mm | Cutting Diameter Maximum (DCX) | 43 mm |
| Tool Type | Deep Hole / Gun Drill | Measurement Type | Metric |

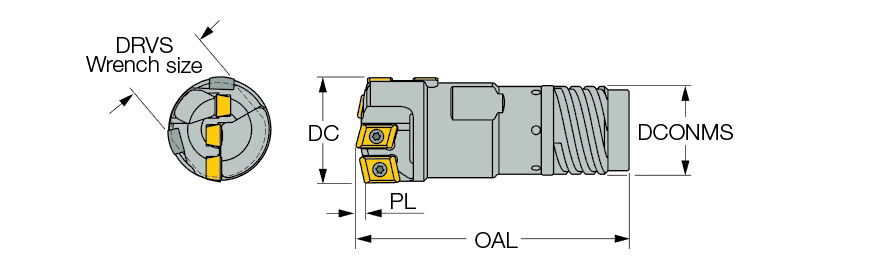

| Overall Length (OAL) | 104 mm | Body Material | Steel |
| Coolant Supply Property (CSP) | Coolant Thru | Unit | M |
| Connection Thread Size (Ts) | TDO-I9 |
Product Features
| Family Description | Deep double tube drills with external 4-Start Thread Connection for high feed. Each item represents a diameter range. For a specific head diameter, an order form should be filled out. | COO | Japan |

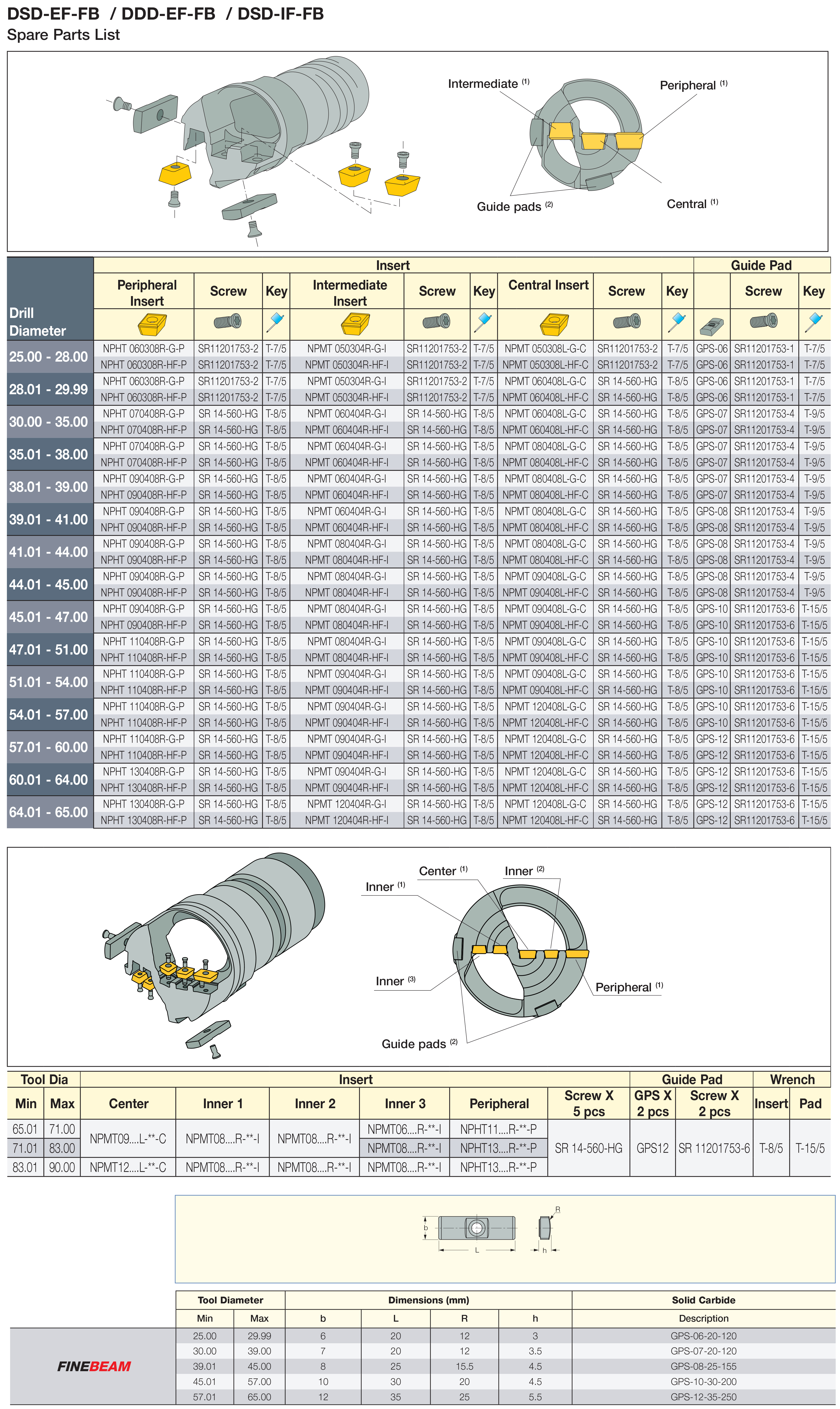

| Remarks | Inserts and guide pads to be ordered separately Ordering example: DDD-EF 43.00-FB For quotation form and user guide, click on More Info |
