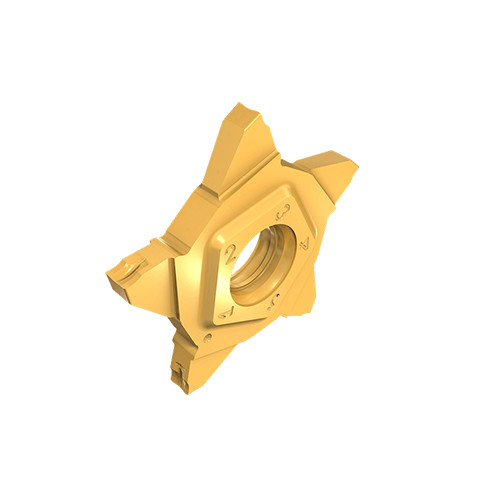

PENTA 24N247J020 IC807G
Parting and precision grooving insert on soft parts, minimizes burr size. Most economical system with 5 cutting edges.
Price: Log in For Price

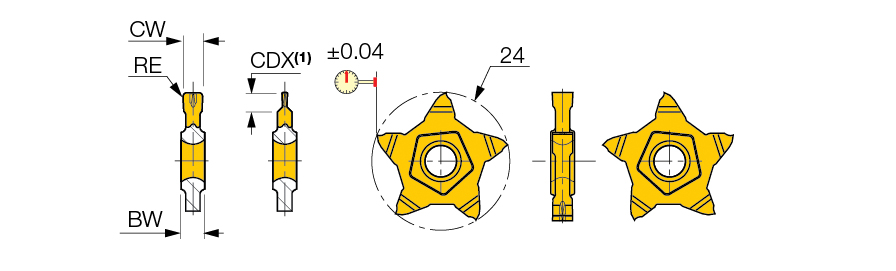

| Cutting Width (CW) | 2.47 mm | Max. Grooving Feed (fg(max)) | 0.16 mm/rev |
| Corner Radius (RE) | 0.2 mm | Min. Grooving Feed (fg(min)) | 0.04 mm/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.03 mm | Chip Breaker Type | J |
| Cutting Depth Maximum (CDX) | 5 mm | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiAlN+AlTiN+TiN | Body Material | Carbide |
| Grade | IC807G | Cutting Width Tolerance (+/-) (CWTOL) | 0.02 mm |
| Cutting Direction (HAND) | Neutral | Insert Width (W1) | 4 mm |
| Application | | Ext. Grooving | Ext. Grooving & Turning | Parting | | Unit | M |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | Parting and precision grooving insert on soft parts, minimizes burr size. Most economical system with 5 cutting edges. | FamilyName | PENTA 24N-J |
| Remarks | Recessing is possible only with 2.39 mm and wider inserts. For parting and grooving range, click on More Info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0116
Name
Parting Off Indexable Inserts
FamilyName
PENTA 24N-J
BrandName
Iscar
Related Documentation
If T is not defined, or T>3.0, grooving depth is limited by the holder.
