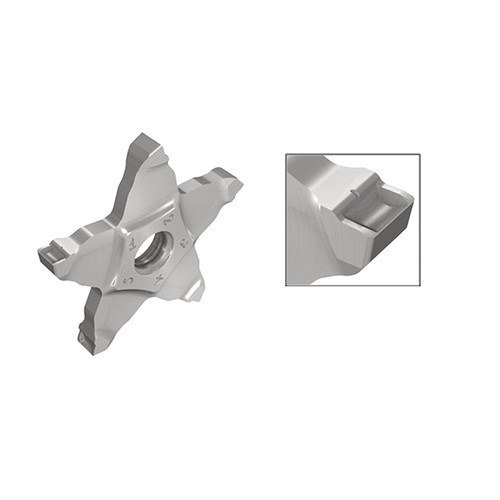

PENTA 34R200C15D IC908
Used for parting of bars, hard materials and tough applications. A positive rake, single cavity with a negative land and shoulders. Medium-to-high feeds.
Price: Log in For Price
| Cutting Width (CW) | 2 mm | Max. Grooving Feed (fg(max)) | 0.1 mm/rev |
| Corner Radius (RE) | 0.1 mm | Min. Grooving Feed (fg(min)) | 0.04 mm/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0 mm | Chip Breaker Type | C |
| Cutting Depth Maximum (CDX) | 8 mm | Tool Type | Parting & Grooving Inserts |

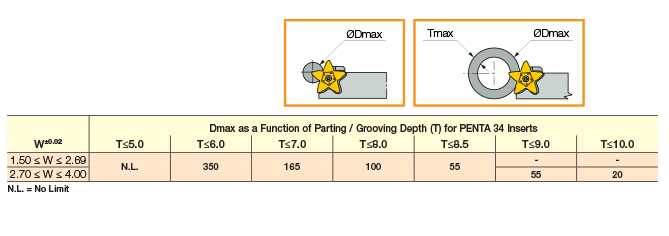

| Cutting Edge Material | Carbide | Work Piece Parting Diameter Maximum (CUTDIA) | 18 mm |
| Coating | TiAlN | Measurement Type | Metric |
| Grade | IC908 | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Cutting Edge Angle Major Right Hand (PSIRR) | 15 Degrees |
| Application | | Parting | | Insert Width (W1) | 4.3 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Unit | M |
Product Features
| Family Description | Used for parting of bars, hard materials and tough applications. A positive rake, single cavity with a negative land and shoulders. Medium-to-high feeds. | FamilyName | PENTA 34R/L-C |
| Remarks | For parting and grooving range, click on More Info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0222
Name
Parting Off Indexable Inserts
FamilyName
PENTA 34R/L-C
BrandName
Iscar
