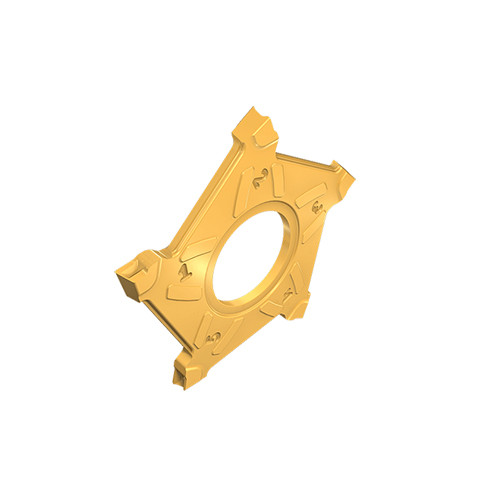

PENTA D40R300C-15D IC808G
Used for parting of bars, hard materials and tough applications. A positive rake, single cavity with a negative land and shoulders. Medium-to-high feeds.
Price: Log in For Price

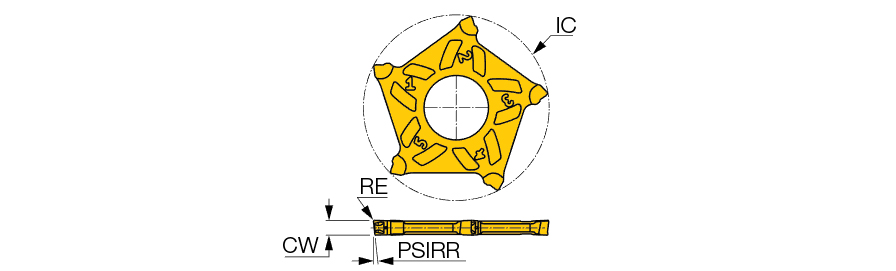

| Cutting Width (CW) | 3 mm | Max. Grooving Feed (fg(max)) | 0.1 mm/rev |
| Corner Radius (RE) | 0.2 mm | Min. Grooving Feed (fg(min)) | 0.04 mm/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0 mm | Chip Breaker Type | C |
| Cutting Edge Material | Carbide | Tool Type | Parting & Grooving Inserts |
| Coating | TiAlN+AlTiN+TiN | Measurement Type | Metric |
| Grade | IC808G | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Cutting Edge Angle Major Right Hand (PSIRR) | 15 Degrees |
| Application | | Parting | | Unit | M |
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | Used for parting of bars, hard materials and tough applications. A positive rake, single cavity with a negative land and shoulders. Medium-to-high feeds. | FamilyName | PENTA D-R/L-C |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0273
Name
Parting Off Indexable Inserts
FamilyName
PENTA D-R/L-C
BrandName
Iscar
