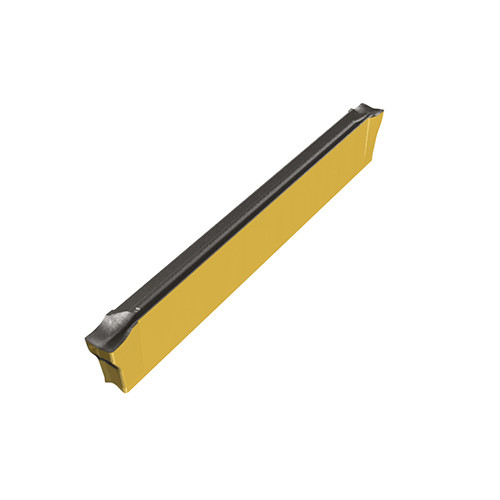

DGR 2002J-6D-XL IC830
First choice for soft materials such as low carbon, alloy and austenitic stainless steel, parting of tubes, small diameters and thin-walled parts at low-to-medium feeds. Cutting edge with a positive rake. JS-type has a sharp corner.
Price: Log in For Price

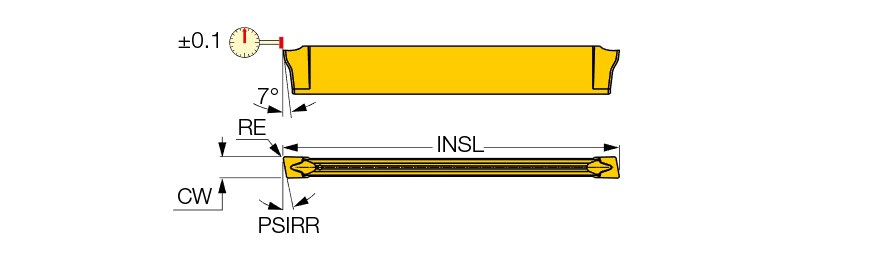

| Cutting Width (CW) | 2 mm | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.2 mm | Max. Grooving Feed (fg(max)) | 0.1 mm/rev |
| Overall Length (OAL) | 32 mm | Min. Grooving Feed (fg(min)) | 0.04 mm/rev |
| Cutting Depth Maximum (CDX) | 30 mm | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | AlTiN+TiN | Body Material | Carbide |
| Grade | IC830 | Cutting Edge Angle Major Right Hand (PSIRR) | 6 Degrees |
| Cutting Direction (HAND) | Right Hand | Unit | M |
| Application | | Parting | |
Product Features
| Family Description | First choice for soft materials such as low carbon, alloy and austenitic stainless steel, parting of tubes, small diameters and thin-walled parts at low-to-medium feeds. Cutting edge with a positive rake. JS-type has a sharp corner. | FamilyName | DGR/L-J-XL |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0065
Name
Parting Off Indexable Inserts
FamilyName
DGR/L-J-XL
BrandName
Iscar
