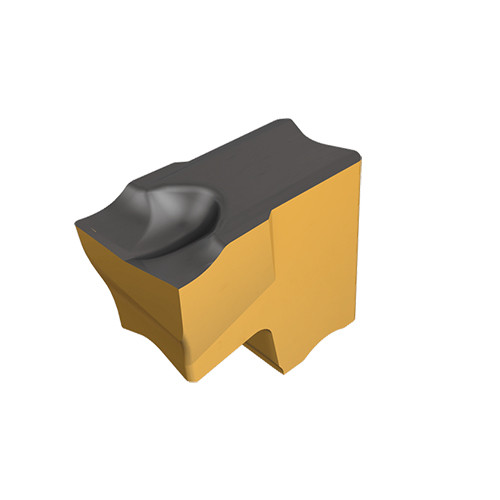

TAG R6.3J-4D IC830
First choice for soft materials, alloy steel and austenitic stainless steel. Parting of tubes, small diameters and thin-walled parts. Cutting edge with positive rake used at low-to-medium feeds. The JS-type has sharp corners.
Price: Log in For Price

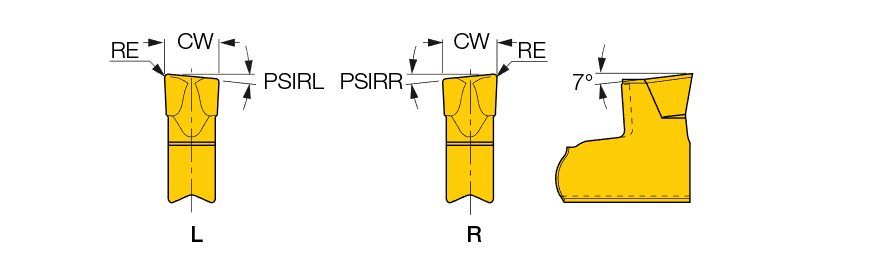

| Cutting Width (CW) | 6.35 mm | Max. Grooving Feed (fg(max)) | 0.2 mm/rev |
| Corner Radius (RE) | 0.35 mm | Min. Grooving Feed (fg(min)) | 0.05 mm/rev |
| Cutting Edge Material | Carbide | Chip Breaker Type | J |
| Coating | AlTiN+TiN | Tool Type | Parting & Grooving Inserts |
| Grade | IC830 | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Body Material | Carbide |
| Application | | Parting | | Cutting Edge Angle Major Right Hand (PSIRR) | 4 Degrees |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Unit | M |
Product Features
| Family Description | First choice for soft materials, alloy steel and austenitic stainless steel. Parting of tubes, small diameters and thin-walled parts. Cutting edge with positive rake used at low-to-medium feeds. The JS-type has sharp corners. | FamilyName | TAG R/L-J/JS |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0059
Name
Parting Off Indexable Inserts
FamilyName
TAG R/L-J/JS
BrandName
Iscar
